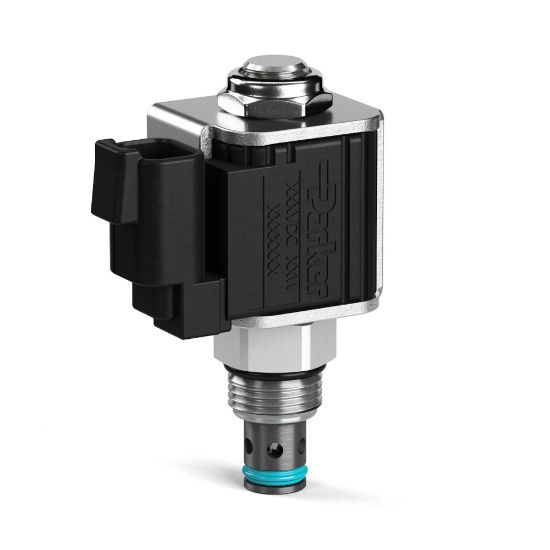

Parker DSL082CS - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSL082CS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Minimum Operating Temperature	-35
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	2-Way
Weight	0.25	Override Functionality	n/a
Cavity Size	C08-2	Wire Mesh Screen Included	Yes
Flow Rate	4	Operation Type	Solenoid Operated
Maximum Operating Temperature	+200	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Mounting Type	Screw in cartridge valve
Operating Temperature	-35 to +200	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C)	Coil Nut Tightening Torque	5-7
Response Time	40	Seal Material	D-Ring
Maximum Flow Rate	4	Installation Torque	23-27
Maximum Operating Pressure	3600	Maximum Inlet Pressure Rating	3600
Leak Rate	120 CC/min @ 3600 PSI (250 BAR)	Configuration	Normally Closed
Seal Material	D-Ring	Actuation Type	Electrical
Flow Rate	4 GAL/MIN, 15 L/MIN	Wire Mesh Screen Included	Yes
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
