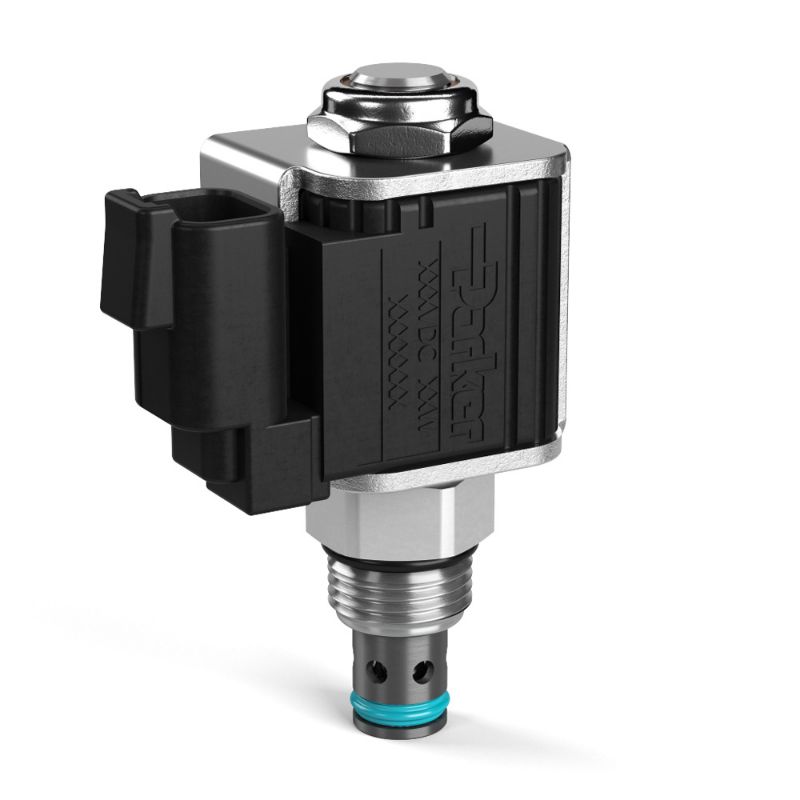

Parker DSL081N - 2 Way Poppet Type Solenoid Valve

Name: Parker DSL081N - 2 Way Poppet Type Solenoid Valve
SKU: DSL081N
Price: 67.75 USD
Availability: InStock

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

AFP Availability:

5 In Stock

North Chesterfield, VA	4
Summerville, SC	1

Partner Available:

72 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. DSL081N

$67.75/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Type	1/2" Super Coil
Cavity Size	C08-2	Override Functionality	N/A
Maximum Operating Temperature	+200 °F	Mounting Type	Screw in cartridge valve
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Minimum Operating Temperature	-35 °F	Maximum Flow Rate	8 Gal/min
Operation Type	Solenoid operated	Operating Temperature	-35 to +200 °F
Division	Hydraulic Systems Division	Body Material	N/A
Flow Rate	8 Gal/min	Installation Torque	31-37 Nm
Actuation Type	Electrical	Seal Material	D-Ring (Standard)
Wire Mesh Screen Included	No	Coil Nut Tightening Torque	7-10 Nm
Maximum Operating Pressure	250 bar	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Free Reverse Flow	No
Adjustment Mechanism	N/A	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.25 lb	Response Time	50 ms
Maximum Inlet Pressure Rating	3600 psi	Function	2-way
Flow Direction	Side to Nose (2-1)	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Configuration	Normally Open	Configuration	Normally Open
Flow Rate	8 GAL/MIN, 30 L/MIN	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Wire Mesh Screen Included	No
Maximum Inlet Pressure Rating	3600 PSI, 250 BAR
