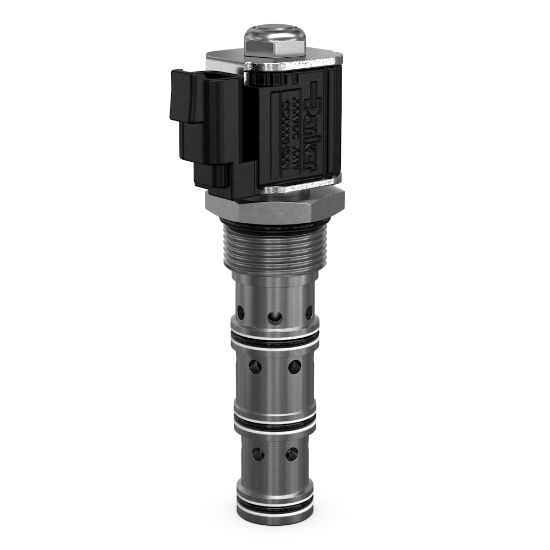

Parker DSH164HR - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH164HR

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Override Functionality	n/a	Maximum Inlet Pressure Rating	5000 psi
Operation Type	Solenoid Operated	Cavity Size	C16-4
Function	4-Way	Maximum Operating Temperature	+121 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Weight	0.59 kg
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	7-10 Nm	Flow Rate	30 Gal/min
Leak Rate	350 De-energized, 1.5 GPM Energized Pilot Flow @ 3000 PSI (207 BAR) cm3/min	Configuration	Motor Regen Transition
Response Time	130 ms	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
Maximum Flow Rate	113 L/min	Installation Torque	40.6-54.2 Nm
Seal Material	Nitrile	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Flow Rate	30 GAL/MIN, 113 L/MIN
Configuration	Motor Regen Transition	Flow Direction	2-1, 3-4 De-Energized, 3-2, 4-1 Energized
