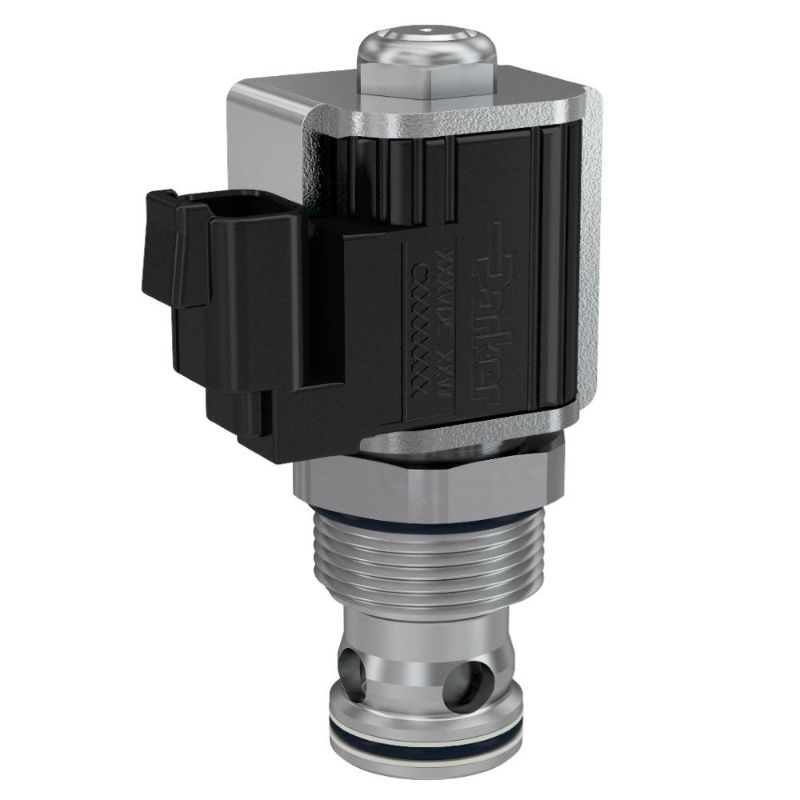

Parker DSH161N - 2 Way Poppet Type Solenoid Valve

Name: Parker DSH161N - 2 Way Poppet Type Solenoid Valve
SKU: DSH161N
Price: 144.00 USD
Availability: InStock

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

AFP Availability:

1 Limited Stock

North Chesterfield, VA

Partner Available:

2 Limited Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. DSH161N

$144.00/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	40 Gal/min
Minimum Operating Temperature	-34 °C	Operation Type	Solenoid operated
Division	Hydraulic Systems Division	Body Material	N/A
Operating Temperature	-30 to +250 °F	Installation Torque	169-173 lb-ft
Flow Rate	40 Gal/min	Seal Material	Nitrile
Actuation Type	Electrical	Coil Nut Tightening Torque	7-10 Nm
Wire Mesh Screen Included	No	Adjustment Mechanism	N/A
Weight	0.75 lb	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Operating Pressure	350 bar
Free Reverse Flow	No	Response Time	45 ms
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Direction	Side to Nose (2-1)
Maximum Inlet Pressure Rating	350 bar	Function	2-way
Configuration	Normally Open	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Coil Type	5/8" Super Coil	Cavity Size	C16-2
Override Functionality	N/A	Maximum Operating Temperature	+121 °C
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Mounting Type	Screw in cartridge valve	Seal Material	Nitrile
Configuration	Normally Open	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	40 GAL/MIN, 150 L/MIN	Actuation Type	Electrical
Wire Mesh Screen Included	No
