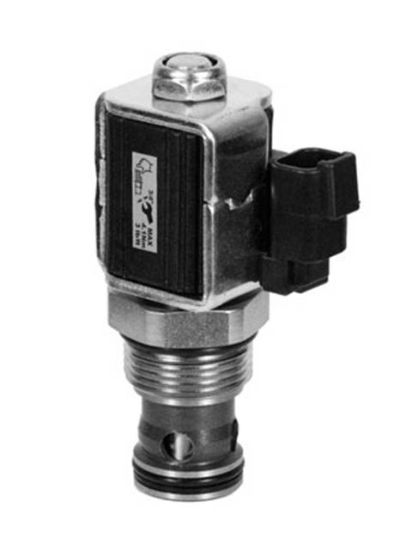

Parker DSH161CHN - DSH161 Solenoid Valve

Poppet Type - 2-Way Solenoid Valve for Size 16, 2-way Cavity

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH161CHN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Body	B16-2
Override Type	None	Pkg Qty/UOM	1 EA
Screen	None	Operating Temperature	-40C to +93.3C (-40F to +200F)
Pkg Qty	1	Rated Flow	150 LPM (40 GPM)
Common Cavity	Size 16, 2-way	Seals	Nitrile
Max Pressure	350 Bar (5000 PSI)	Leakage	5 drops/min. (.33 cc/min.) @75% of crack pressure
Valve Type Detail	Poppet Type - 2-Way	Parker Division	Hydraulic Cartridge Systems
Screen	None	Operating Temperature	-40C to +93.3C (-40F to +200F)
Seals	Nitrile	Valve Type	Solenoid Valve
Valve Style	Normally Closed - Metered Reverse Flow (Fast Response)	Common Cavity Type	Size 16, 2-way
Rated Flow	150 LPM (40 GPM)	Max Pressure	350 Bar (5000 PSI)
Parker Group	Hydraulic	Port	None - Cartridge Only
Valve Body	B16-2	Leakage	5 drops/min. (.33 cc/min.) @75% of crack pressure
Series	DSH161	Override Type	None

Product resources

Solenoid Valves (PDF)
