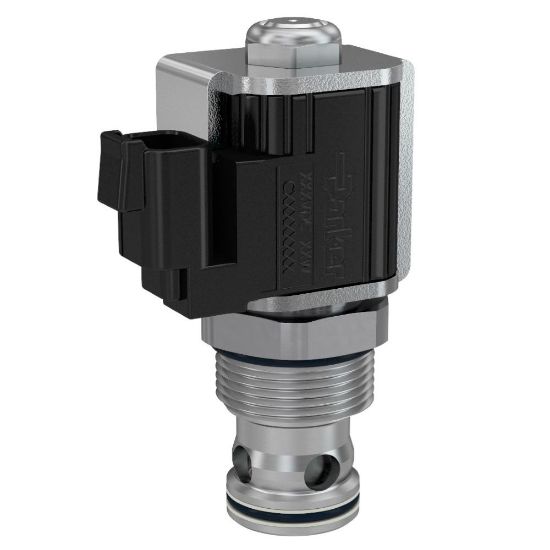

Parker DSH161C - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Quote Required
Partner Available:	12 In Stock

Brand Parker

Part No. DSH161C

$98.06

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Systems Division
Flow Direction	Side to Nose (2-1)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Weight	0.34 kg
Function	2-Way	Override Functionality	n/a
Maximum Flow Rate	40 Gal/min	Maximum Inlet Pressure Rating	5000 psi
Cavity Size	C16-2	Operation Type	Solenoid Operated
Maximum Operating Temperature	+250 °F	Flow Rate	150 L/min
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Leak Rate	5 drops/min
Input Voltage	85% of rated voltage at 72°F (20°C) min	Response Time	50 ms
Coil Nut Tightening Torque	5-7 lb-ft	Free Reverse Flow	No
Adjustment Mechanism	N/A	Coil Type	5/8" Super Coil
Installation Torque	169-173 lb-ft	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	40 GAL/MIN, 150 L/MIN	Actuation Type	Electrical
Wire Mesh Screen Included	No
