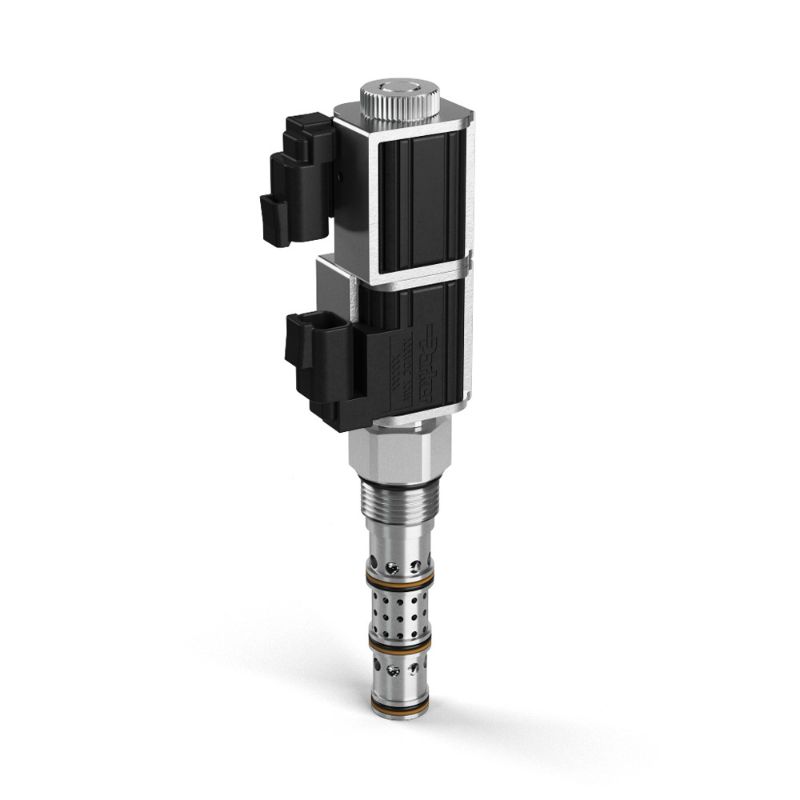

Parker DSH12559DNN - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH12559DNN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Maximum Operating Pressure	5000 psi	Division	Hydraulic Systems Division
Flow Rate	15 Gal/min	Maximum Flow Rate	57 L/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Maximum Inlet Pressure Rating	5000 psi	Coil Nut Tightening Torque	4.1 Nm
Weight	0.45 kg	Cavity Size	C12-4L
Function	4-Way	Maximum Operating Temperature	+250 °F
Actuation Type	Electrical, Manual	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operation Type	Solenoid operated, Manually operated	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Open Center	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Type	5/8" Super Coil
Response Time	30-60 ms	Leak Rate	160 @ 3000 PSI (210 BAR) cm3/min
Installation Torque	74 Nm	Override Functionality	Push/Pull - Center Detent
Maximum Tank Pressure	210 bar	Flow Rate	15 GAL/MIN, 57 L/MIN
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical, Manual
Configuration	Open Center	Seal Type	Nitrile
