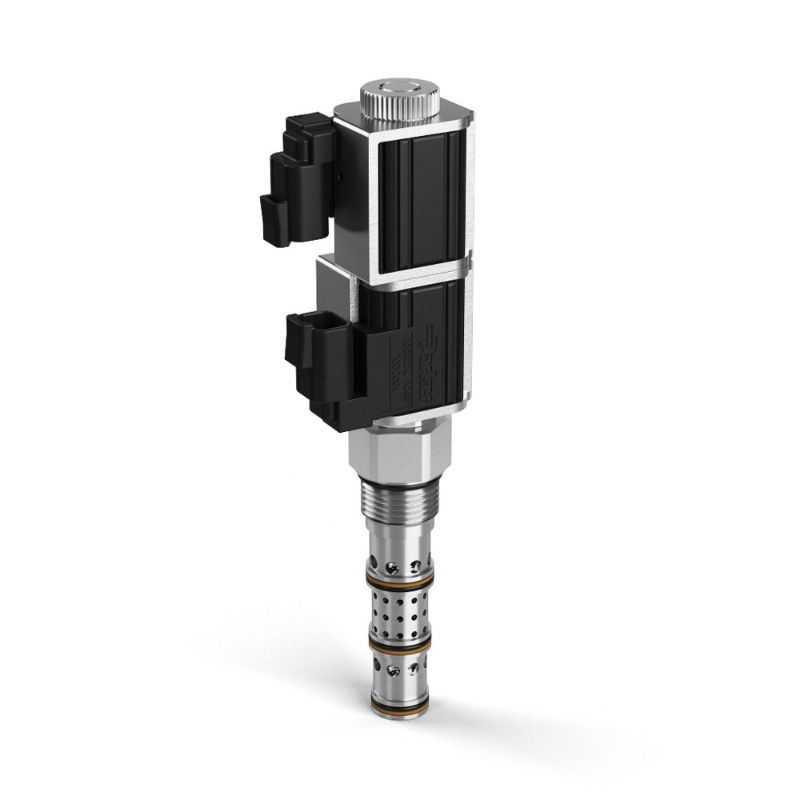

Parker DSH12552DNV - 4 Way 3 Position Spool Type Solenoid Valve

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH12552DNV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Systems Division
Flow Rate	15	Maximum Flow Rate	15
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-15
Weight	1	Maximum Inlet Pressure Rating	5000
Coil Nut Tightening Torque	3	Cavity Size	C12-4L
Function	4-Way	Actuation Type	Electrical, Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-15 to +400	Installation Torque	55
Maximum Operating Temperature	+400	Configuration	Closed Center
Mounting Type	Screw in cartridge valve	Input Voltage	85% of rated voltage at 72°F (20°C)
Coil Type	5/8" Super Coil	Response Time	30-60
Leak Rate	160 @ 3000 PSI (210 BAR)	Override Functionality	Push/Pull - Center Detent
Maximum Tank Pressure	3000	Flow Rate	15 GAL/MIN, 57 L/MIN
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Actuation Type	Electrical, Manual
Configuration	Closed Center	Seal Type	Fluorocarbon
