*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

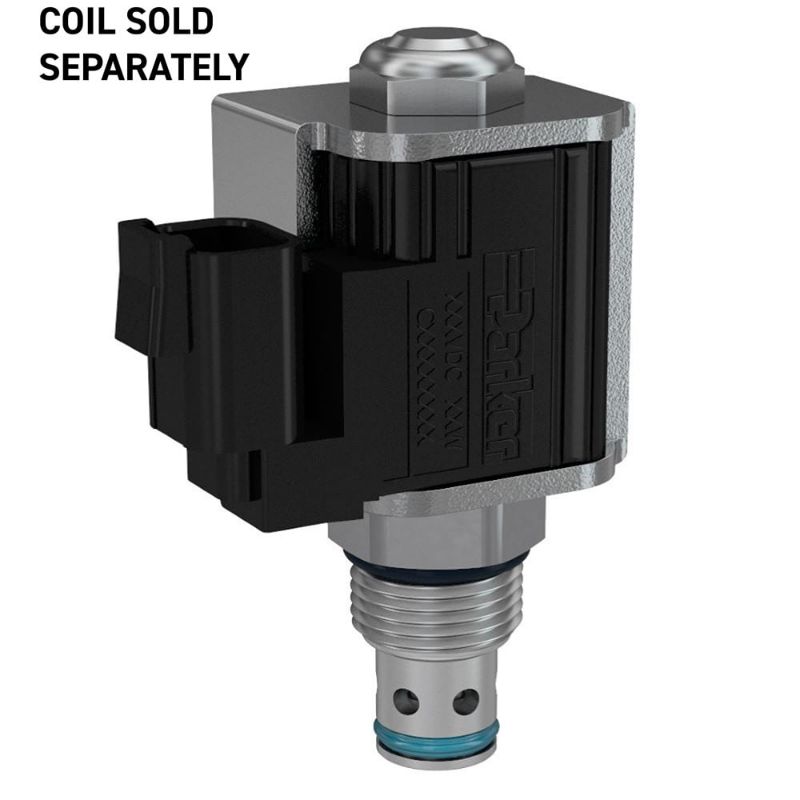

Parker DSH102N - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Quote Required
Partner Available:	33 In Stock

Brand Parker

Part No. DSH102N

$58.13

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-35 °F
Function	2-Way	Maximum Operating Temperature	+200 °F
Weight	0.4 lb	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Maximum Flow Rate	5 Gal/min
Flow Rate	19 L/min	Cavity Size	C10-2
Maximum Inlet Pressure Rating	350 bar	Operation Type	Solenoid Operated
Configuration	Normally Open	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Wire Mesh Screen Included	No	Mounting Type	Screw in cartridge valve
Operating Temperature	-35 to +200 °F	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Coil Nut Tightening Torque	7-10 Nm
Leak Rate	160 CC/min @ 5000 PSI (350 BAR) cm3/min	Seal Material	D-Ring
Coil Type	5/8" Super Coil	Installation Torque	51-55 lb-ft
Configuration	Normally Open	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Flow Rate	5 GAL/MIN, 19 L/MIN	Seal Material	D-Ring
Actuation Type	Electrical	Wire Mesh Screen Included	No
