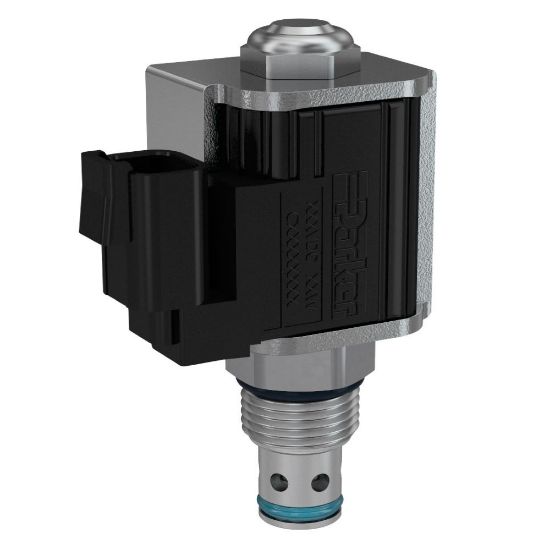

Parker DSH102CT - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH102CT

$122.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Operation Type	Solenoid operated, Manually operated
Operating Temperature	-35 to +200 °F	Body Material	N/A
Mounting Type	Screw in cartridge valve	Maximum Flow Rate	30 L/min
Installation Torque	51-55 lb-ft	Flow Rate	30 L/min
Division	Hydraulic Systems Division	Minimum Operating Temperature	-35 °F
Wire Mesh Screen Included	No	Coil Nut Tightening Torque	5-7 lb-ft
Actuation Type	Electrical, Manual	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.4 lb	Response Time	30 ms
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Operating Pressure	350 bar	Seal Material	D-Ring
Maximum Inlet Pressure Rating	350 bar	Function	2-way
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Override Functionality	Push and Twist	Maximum Operating Temperature	+200 °F
Coil Type	5/8" Super Coil	Cavity Size	C10-2
Leak Rate	160 CC/min @ 5000 PSI (350 BAR) cm3/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Configuration	Normally Closed	Flow Rate	8 GAL/MIN, 30 L/MIN
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Seal Material	D-Ring
Actuation Type	Electrical, Manual	Wire Mesh Screen Included	No
