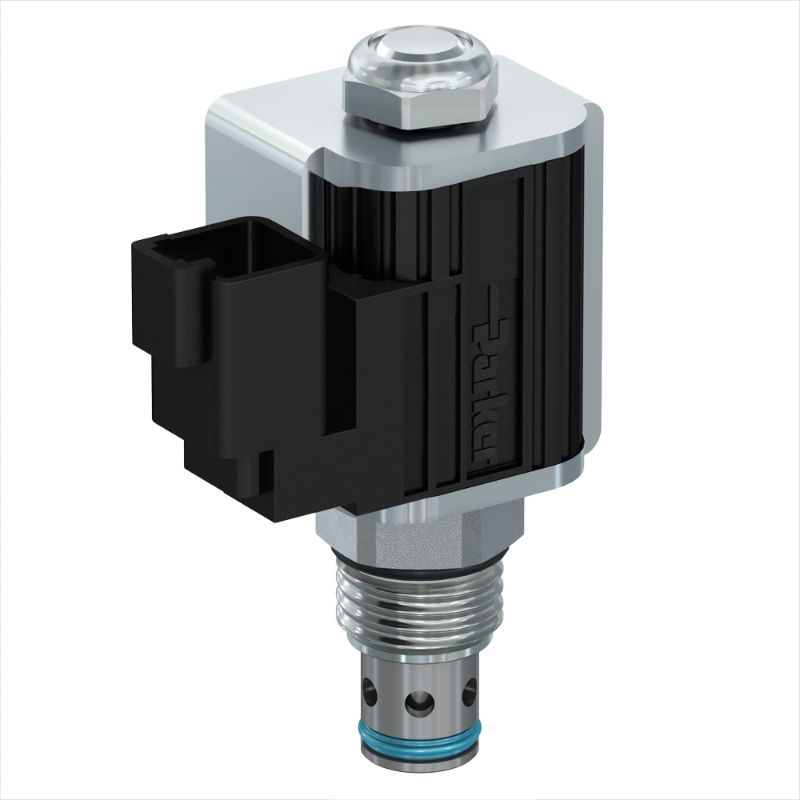

Parker DSH101C - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

AFP Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. DSH101C

$88.48/each

Products specifications

Attribute name	Attribute value
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Mounting Type	Screw in cartridge valve	Operation Type	Solenoid operated
Operating Temperature	-37 to +93 °C	Division	Hydraulic Systems Division
Body Material	N/A	Maximum Flow Rate	60 L/min
Installation Torque	51-55 lb-ft	Minimum Operating Temperature	-37 °C
Flow Rate	60 L/min	Wire Mesh Screen Included	No
Coil Nut Tightening Torque	7-10 Nm	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Valve Material	All parts steel. All operating parts hardened steel
Weight	0.41 lb	Response Time	80 ms
Maximum Operating Pressure	350 bar	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Free Reverse Flow	No
Adjustment Mechanism	N/A	Flow Direction	Side to Nose (2-1)
Maximum Inlet Pressure Rating	5000 psi	Function	2-way
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Override Functionality	N/A	Maximum Operating Temperature	+200 °F
Coil Type	5/8" Super Coil	Cavity Size	C10-2
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Actuation Type	Electrical
Wire Mesh Screen Included	No	Flow Rate	15 GAL/MIN, 60 L/MIN
