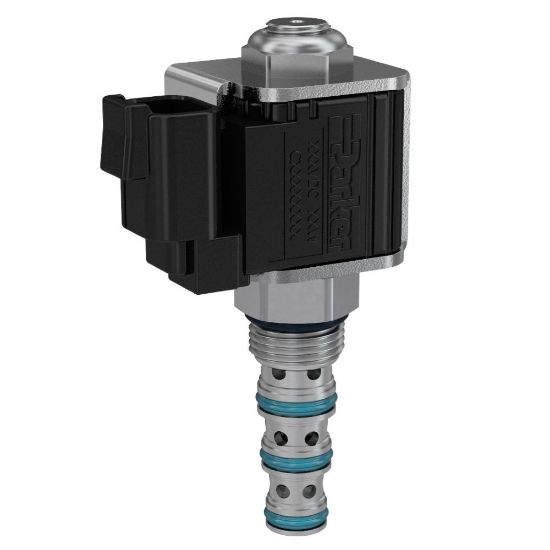

Parker DSH084M9T - 4 Way 2 Position Spool Type Solenoid Valve

Parker’s direct acting 4-way, 2-position spool-type solenoids offer a simple electronic solution for actuation or reversing applications; available with flows up to 113 lpm (30 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH084M9T

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-35	Body Material	n/a
Maximum Operating Pressure	5000	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	n/a
Weight	0.29	Maximum Inlet Pressure Rating	5000
Flow Rate	4	Seal Material	D-Ring (Standard)
Cavity Size	C08-4	Function	4-Way
Maximum Operating Temperature	+200	Actuation Type	Electrical, Manual
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Operating Temperature	-35 to +200
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C)
Response Time	50	Installation Torque	32-36
Override Functionality	Push and Twist	Coil Nut Tightening Torque	5-7
Leak Rate	160 @ 5000 PSI (350 BAR)	Maximum Flow Rate	4
Flow Direction	2-1, 3-4 De-Energized, 3-1, 2 and 4 blocked Energized	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring (Standard)	Actuation Type	Electrical, Manual
Flow Rate	4 GAL/MIN, 15 L/MIN	Configuration	N/A
Flow Direction	2-1, 3-4 De-Energized, 3-1, 2 and 4 blocked Energized
