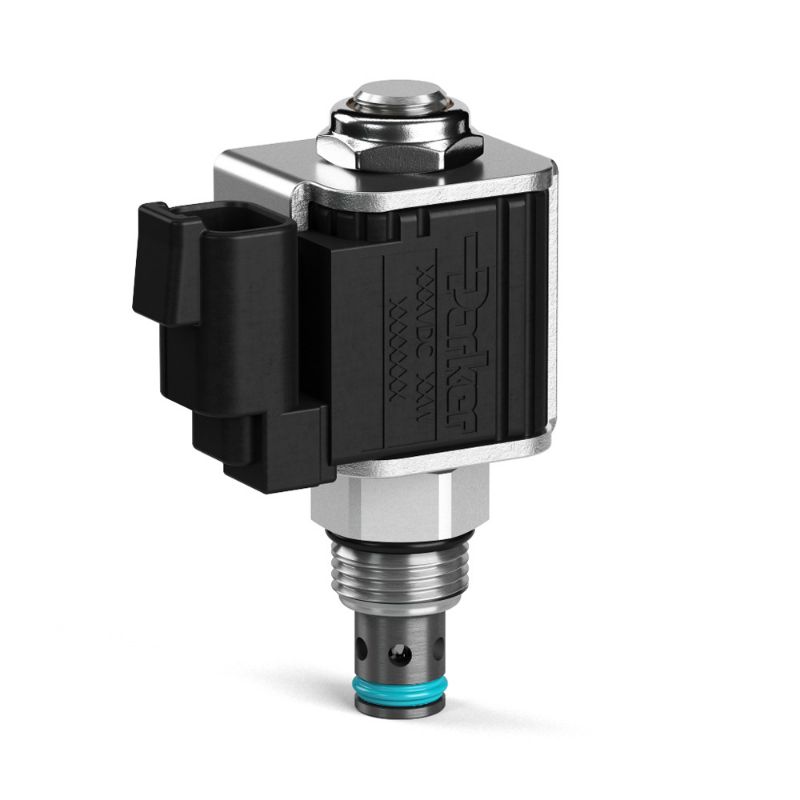

Parker DSH082N - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. DSH082N

$85.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Actuation Type	Electrical
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Function	2-Way
Maximum Operating Temperature	+200 °F	Override Functionality	n/a
Cavity Size	C08-2	Maximum Inlet Pressure Rating	5000 psi
Operation Type	Solenoid Operated	Weight	0.25 lb
Installation Torque	43-49 Nm	Configuration	Normally Open
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Operating Temperature	-37 to +93 °C
Coil Type	1/2" Super Coil	Input Voltage	85% of rated voltage at 72°F (20°C) min
Coil Nut Tightening Torque	5-7 lb-ft	Flow Rate	2.8 Gal/min
Leak Rate	160 CC/min @ 5000 PSI (350 BAR) cm3/min	Response Time	40 ms
Seal Material	D-Ring	Maximum Flow Rate	2.8 Gal/min
Configuration	Normally Open	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Seal Material	D-Ring	Actuation Type	Electrical
Wire Mesh Screen Included	No	Flow Rate	2.8 GAL/MIN, 8.4 L/MIN
