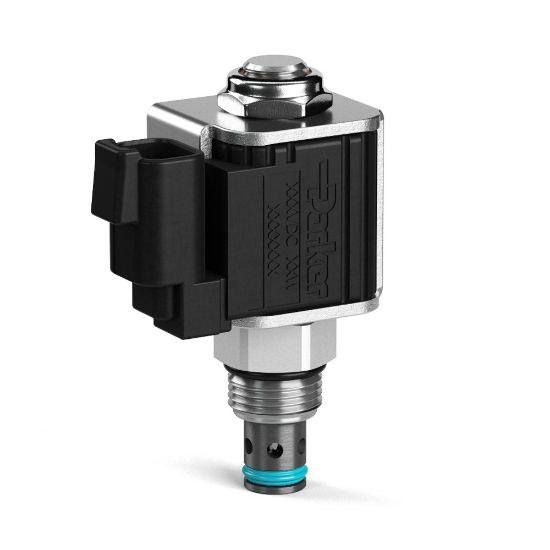

Parker DSH082CN - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH082CN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Nitrile
Body Material	n/a	Division	Hydraulic Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Function	2-Way	Override Functionality	n/a
Maximum Operating Pressure	350 bar	Weight	0.11 kg
Cavity Size	C08-2	Maximum Inlet Pressure Rating	350 bar
Flow Rate	4 Gal/min	Operation Type	Solenoid Operated
Installation Torque	43-49 Nm	Maximum Operating Temperature	+250 °F
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Input Voltage	85% of rated voltage at 72°F (20°C) min	Coil Nut Tightening Torque	7-10 Nm
Leak Rate	160 CC/min @ 5000 PSI (350 BAR) cm3/min	Response Time	40 ms
Maximum Flow Rate	4 Gal/min	Seal Material	Nitrile
Configuration	Normally Closed	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Flow Rate	4 GAL/MIN, 15 L/MIN
Wire Mesh Screen Included	No
