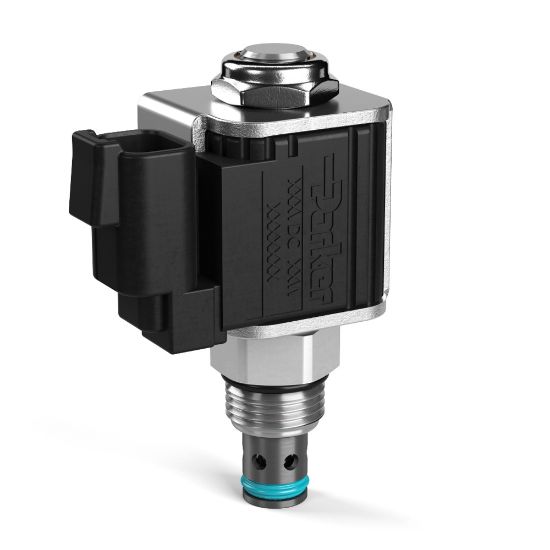

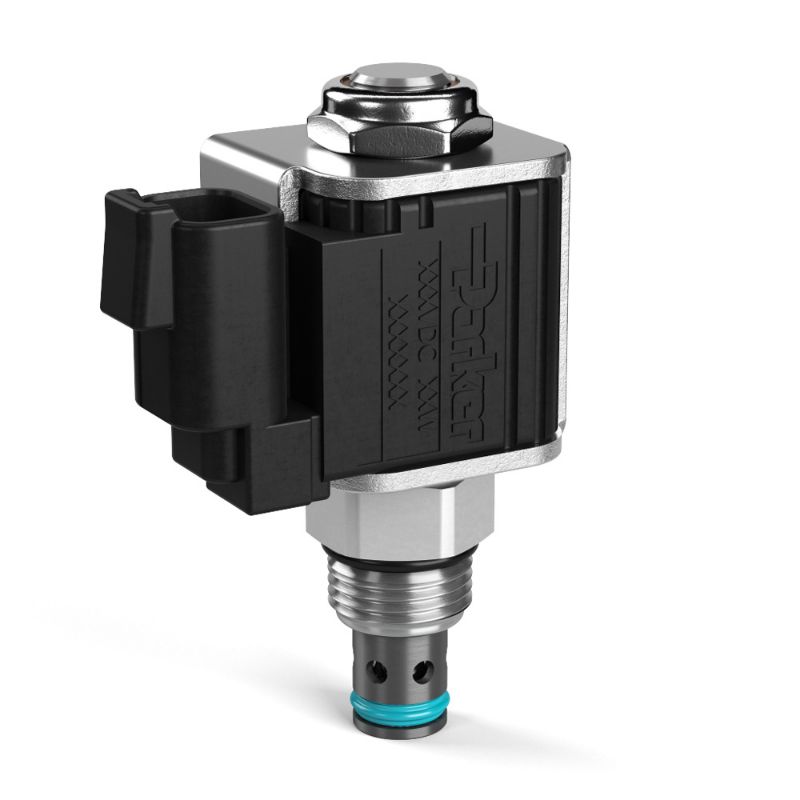

Parker DSH081CHRNS - 2 Way Poppet Type Solenoid Valve

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSH081CHRNS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Seal Material	Nitrile
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Systems Division	Flow Direction	Side to Nose (2-1)
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-30 °F
Function	2-Way	Override Functionality	n/a
Maximum Flow Rate	8 Gal/min	Weight	0.11 kg
Cavity Size	C08-2	Wire Mesh Screen Included	Yes
Flow Rate	8 Gal/min	Maximum Inlet Pressure Rating	350 bar
Operation Type	Solenoid Operated	Installation Torque	43-49 Nm
Maximum Operating Temperature	+250 °F	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Mounting Type	Screw in cartridge valve	Coil Type	1/2" Super Coil
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	30 ms	Coil Nut Tightening Torque	7-10 Nm
Free Reverse Flow	Yes	Adjustment Mechanism	N/A
Seal Material	Nitrile	Configuration	Normally Closed
Flow Rate	8 GAL/MIN, 30 L/MIN	Maximum Inlet Pressure Rating	5000 PSI, 350 BAR
Actuation Type	Electrical	Wire Mesh Screen Included	Yes
