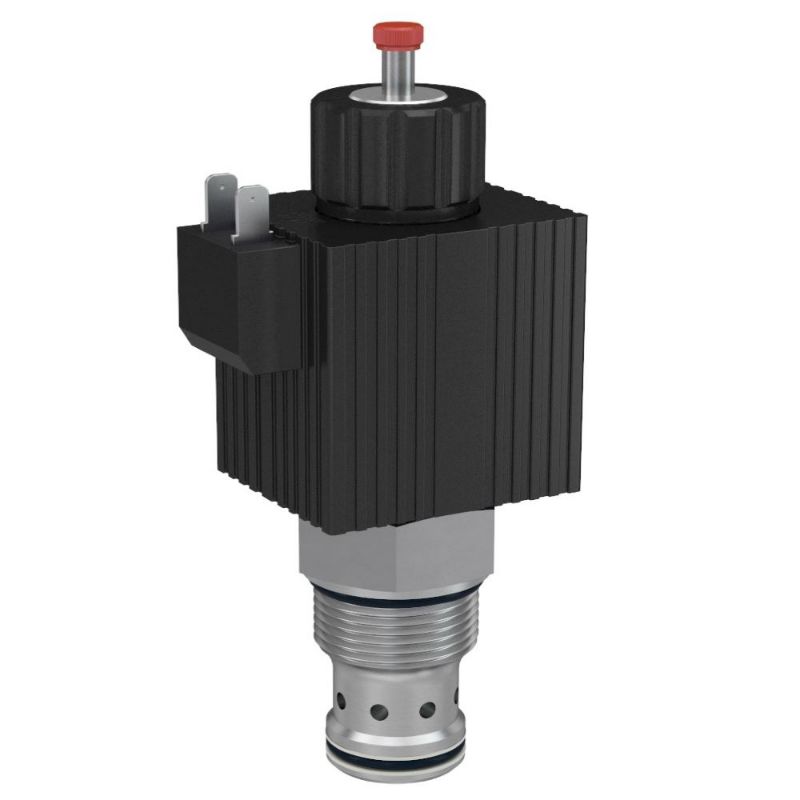

Parker DS162C - 2 Way Spool Type Solenoid Valve

Parker’s selection of direct acting 2-way, 2-position spool-type solenoid valves cover a wide range of flows up to 75 lpm (20 gpm) and pressures as high as 350 bar (5000 psi), with both normally-closed and normally-open options available.

Availability:	Quote Required
Partner Available:	13 In Stock

Brand Parker

Part No. DS162C

$188.81

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Response Time	90 ms
Coil Type	1" DS Coil	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Valve Material	All parts steel. All operating parts hardened steel	Override Functionality	Push
Cavity Size	C16-2	Weight	1.3 lb
Maximum Flow Rate	75 L/min	Maximum Inlet Pressure Rating	210 bar
Body Material	n/a	Input Voltage	85% of rated voltage at 72°F (20°C) min
Function	2-Way	Seal Material	Nitrile
Mounting Type	Screw in cartridge valve	Division	Hydraulic Systems Division
Wire Mesh Screen Included	No	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Actuation Type	Electrical, Manual	Coil Nut Tightening Torque	4.1 Nm
Minimum Operating Temperature	-34 °C	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Leak Rate	240 CC/min @ 3000 PSI (210 BAR) cm3/min	Operating Temperature	-34 to +121 °C
Maximum Operating Temperature	+250 °F	Maximum Operating Pressure	3000 psi
Configuration	Normally Closed	Flow Rate	75 L/min
Installation Torque	54 Nm	Operation Type	Solenoid operated, Manually operated
Actuation Type	Electrical, Manual	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Wire Mesh Screen Included	No	Configuration	Normally Closed
Seal Material	Nitrile	Flow Rate	20 GAL/MIN, 75 L/MIN
