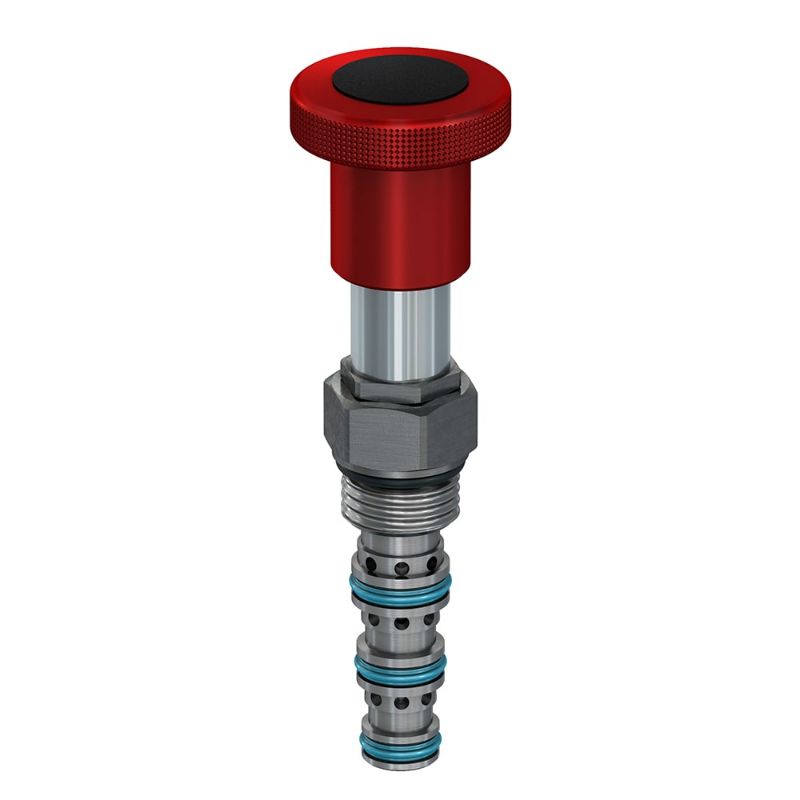

Parker DMH085C2 - 3 Position, 4 Way Pull/Push to Shift Spool Type Manual Valve

REGIONAL - Parker’s 3-position, 4-way manual spool valves are spring centered shift by pushing and pulling with available detents and are capable of flows up to 19 lpm (5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DMH085C2

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	n/a	Maximum Operating Pressure	5000 psi
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-37 °C	Operation Type	Manual
Weight	0.12 kg	Leak Rate	n/a
Maximum Inlet Pressure Rating	5000 psi	Flow Rate	4 Gal/min
Seal Material	D-Ring (Standard)	Cavity Size	C08-4
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Function	Spool Type
Configuration	Open Center	Actuation Type	Push/Pull to shift
Maximum Flow Rate	17 L/min	Installation Torque	36 lb-ft
Maximum Tank Pressure	35 bar	Operating Temperature	-37 to +93 °C
Maximum Operating Temperature	+93 °C	Detents	No
Force	11 lbf	Seal Material	D-Ring (Standard)
Flow Rate	4 GAL/MIN, 15 L/MIN	Configuration	Open Center
Detents	No
