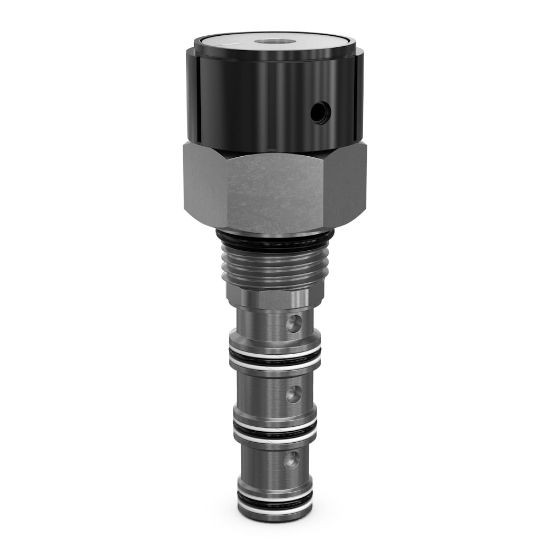

Parker DM104K1V - 4 Way Rotary Type Manual Valve

REGIONAL - Parker’s manually operated 4-way, 2 or 3-position directional control spool valve is capable of flows up to 7.5 lpm (2 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DM104K1V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorocarbon	Body Material	n/a
Weight	0.3	Division	Hydraulic Systems Division
Installation Torque	16	Maximum Operating Pressure	3500
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	3500
Minimum Operating Temperature	-15	Operation Type	Manual
Cavity Size	C10-4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operating Temperature	-15 to +400	Maximum Operating Temperature	+400
Function	Spool Type	Flow Rate	7.5
Leak Rate	164 @ 3500 PSI (240 BAR)	Configuration	Knob
Actuation Type	Rotary	Maximum Flow Rate	2
Maximum Tank Pressure	500	Detents	N/A
Rotation Angle	90	Spool Type	Closed Center
Seal Material	Fluorocarbon	Configuration	Knob
Detents	N/A	Spool Type	Closed Center
