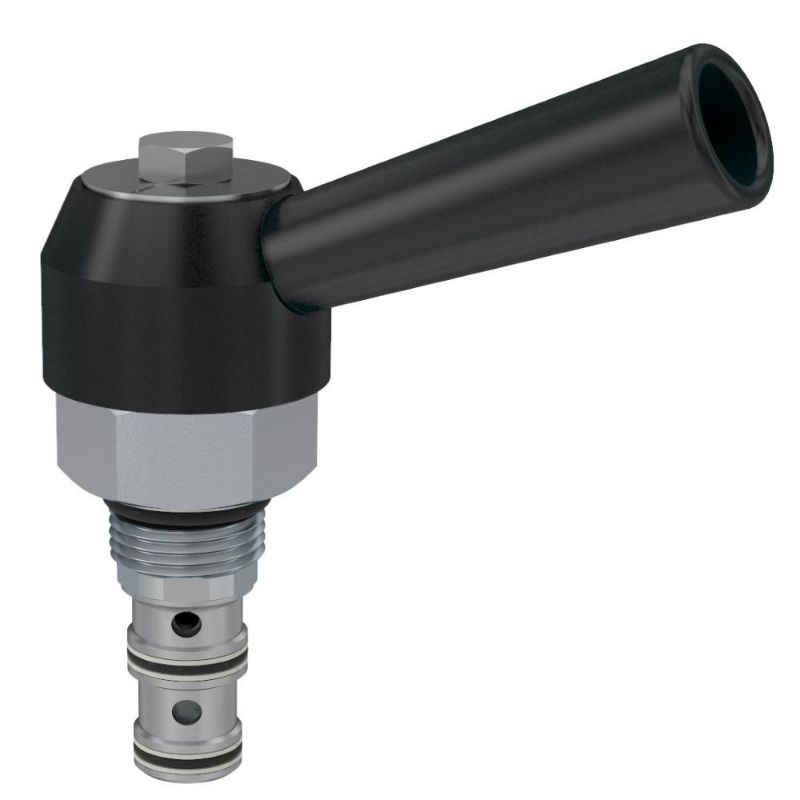

Parker DM103FKN - 3 Way Rotary Type Manual Valve

REGIONAL - Parker’s manually operated 3-way, 2 or 3-position directional control spool valve is capable of flows up to 23 lpm (6 gpm) and pressures as high as 240 bar (3500 psi). Knob and lever actuators are available with detents.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DM103FKN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Weight	0.3 lb	Division	Hydraulic Systems Division
Installation Torque	16 lb-ft	Maximum Operating Pressure	3500 psi
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Inlet Pressure Rating	240 bar
Minimum Operating Temperature	-30 °F	Maximum Flow Rate	6 Gal/min
Operation Type	Manual	Cavity Size	C10-3
Maximum Operating Temperature	+250 °F	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Operating Temperature	-34 to +121 °C	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Function	Spool Type	Flow Rate	22.5 L/min
Leak Rate	164 @ 3500 PSI (240 BAR) cm3/min	Configuration	Finger Knob
Actuation Type	Rotary	Valve Material	Stem, stainless steel. All other parts hardened steel.
Maximum Tank Pressure	500 psi	Detents	3 position detent
Rotation Angle	45 °	Seal Material	Nitrile
Configuration	Finger Knob	Detents	3 position detent
