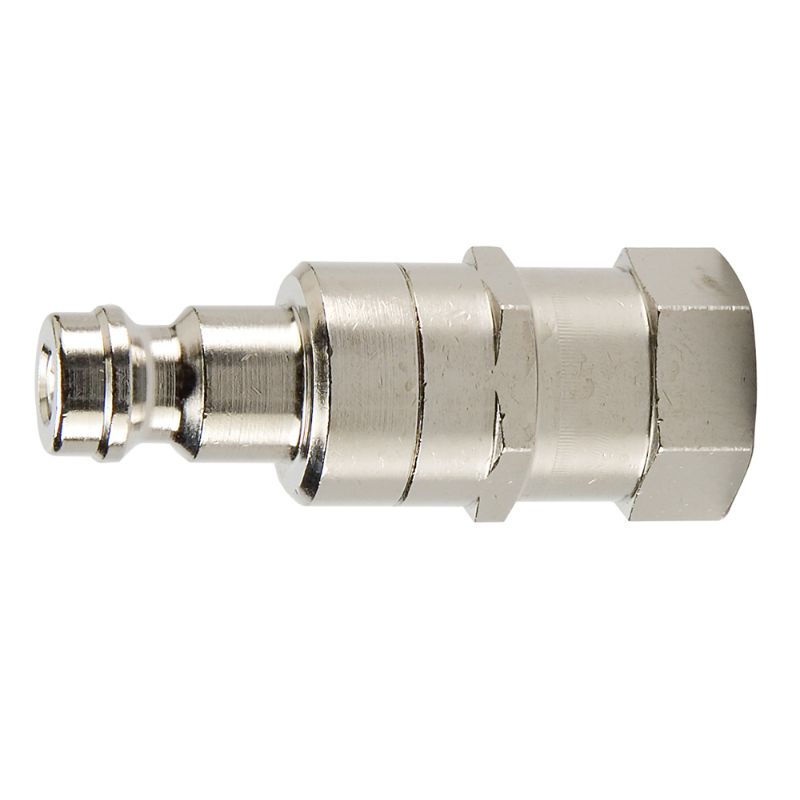

Parker DM-122-2FP - Miniature Size, Double Shut-off, Push to Connect Quick Couplings - DM Series

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DM-122-2FP

Products specifications

Attribute name	Attribute value
Body Material	Brass	Hex Size	0.55 inch
Product Type	Push to connect	Plating Type	Nickel Plated
Minimum Operating Temperature	-15.0 °F	Application	Fluid or gas, low pressure
Flow Rate	0.8 Gal/min	Seal Material	Fluorocarbon
Maximum Operating Pressure	250.0 psi	Valve Type	Poppet
Maximum Operating Temperature	400.0 °F	Division	Quick Coupling Division
Coupling Half	Male Nipple	Connection Type	Female NPTF
Connection Thread Size	1/8 - 27	Body Size	1/8

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
