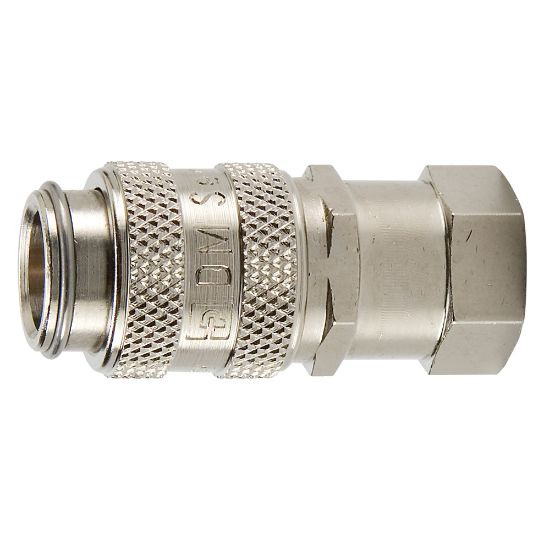

Parker DM-121-4FP - Miniature Size, Double Shut-off, Push to Connect Quick Couplings - DM Series

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DM-121-4FP

$29.26

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Body Material	Steel	Seal Material	Fluorocarbon
Valve Type	Poppet	Plating Type	Nickel Plated
Product Type	Push to Connect	Flow Rate	0.8 Gal/min
Maximum Operating Pressure	250.0 psi	Maximum Operating Temperature	400.0 °F
Minimum Operating Temperature	-15.0 °F	Hex Size	0.67 inch
Application	Fluid or gas, low pressure	Coupling Half	Female Coupler
Connection Type	Female NPTF	Connection Thread Size	1/4 - 18
Body Size	1/8
