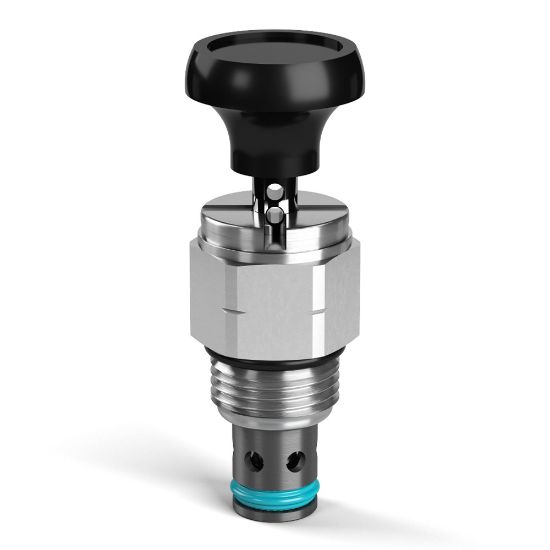

Parker DL081P - 2 Position, 2 Way Normally Closed Poppet Type Manual Valve

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DL081P

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Maximum Operating Pressure	210 bar
Operation Type	Manual	Weight	0.08 kg
Maximum Flow Rate	30 L/min	Cavity Size	C08-2
Flow Rate	8 Gal/min	Maximum Inlet Pressure Rating	3000 psi
Cracking Pressure	n/a	Seal Material	D-Ring (Standard)
Installation Torque	20 Nm	Configuration	Normally Closed
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Function	Poppet Type
Leak Rate	5 @ 3000 PSI (210 BAR) drops/min	Mounting Type	Screw in cartridge valve
Actuation Type	Lock Pin	Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet
Maximum Tank Pressure	80 psi	Operating Temperature	-37 to +93 °C
Maximum Operating Temperature	+93 °C	Configuration	Normally Closed
Flow Rate	8 GAL/MIN, 30 L/MIN	Seal Material	D-Ring (Standard)
Actuation Type	Lock Pin
