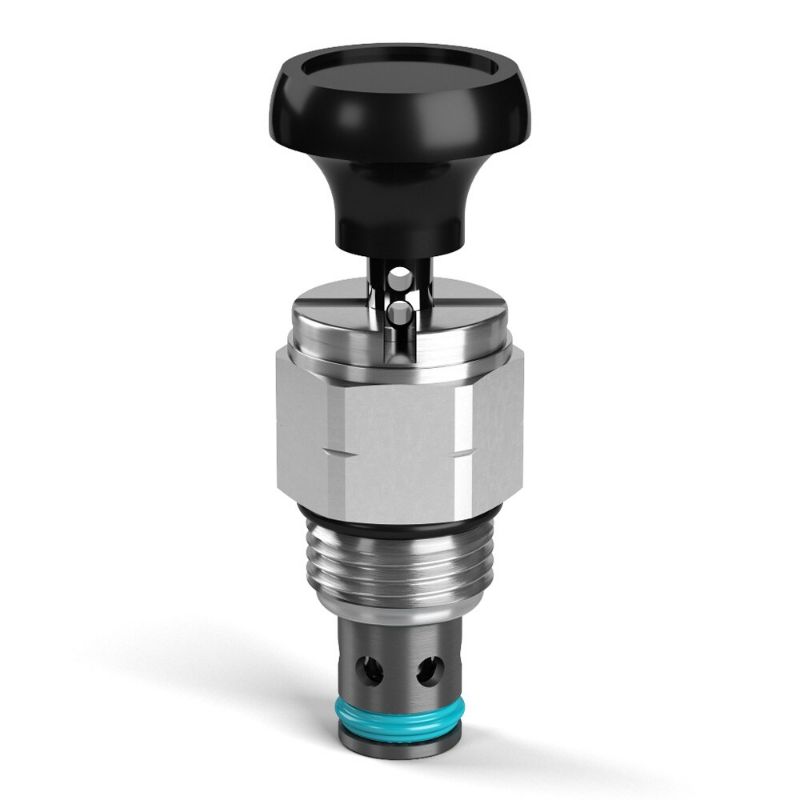

Parker DL081K - 2 Position, 2 Way Normally Closed Poppet Type Manual Valve

REGIONAL - Parker’s 2-position, 2-way normally-closed manual poppet valves are available with stem, knob, or lever actuators and are capable of flows up to 49 lpm (13 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	12 In Stock

Brand Parker

Part No. DL081K

$64.69

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000 psi
Connection Size	n/a	Connection Type	n/a
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Weight	0.17 lb
Operation Type	Manual	Maximum Flow Rate	30 L/min
Flow Rate	30 L/min	Cavity Size	C08-2
Cracking Pressure	n/a	Seal Material	D-Ring (Standard)
Installation Torque	20 Nm	Maximum Inlet Pressure Rating	210 bar
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Function	Poppet Type	Leak Rate	5 @ 3000 PSI (210 BAR) drops/min
Mounting Type	Screw in cartridge valve	Actuation Type	Knob
Flow Direction	Port 2 (side) inlet - Port 1 (nose) outlet	Maximum Tank Pressure	80 psi
Operating Temperature	-35 to +200 °F	Maximum Operating Temperature	+93 °C
Configuration	Normally Closed	Flow Rate	8 GAL/MIN, 30 L/MIN
Seal Material	D-Ring (Standard)	Actuation Type	Knob
