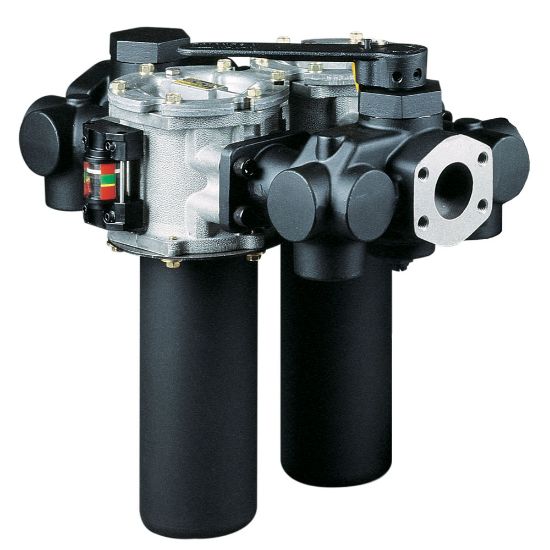

Parker DILP120QBEE35Y9Y91 - Low Pressure Inline Filter Moduflow™ Plus Series

Parker's Moduflow™ Plus series suction/return/duplex patented filter element features longer life and increased dirt capacity. Allowable operating pressure of 200PSI/13.8Bar and capable of flows up to 150GPM/581LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DILP120QBEE35Y9Y91

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Inline	Housing Material	Aluminum
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Options	None
Filter Element Type	20Q Microglass	Maximum Operating Temperature	225 °F
Flow Rate	50 Gal/min	Weight	24.9 kg
Port Type	2 inch SAE flange face, 2 inch SAE flange face	Indicator Type	Electrical, Electrical
Compatible Element	937396Q	Indicator Pressure Setting	31.5 psi
Pressure Rating	200 psi	Bypass Valve Pressure Rating	2.4 bar
Seal Material	Nitrile	Options	None
Filter Element	20Q Microglass	Flow Rate (gpm)	50
Indicator Type	Electrical, Electrical	Bypass Valve (psi)	35
Port Connection Type	2 inch SAE flange face, 2 inch SAE flange face

Product resources

Literature and Reference Materials
