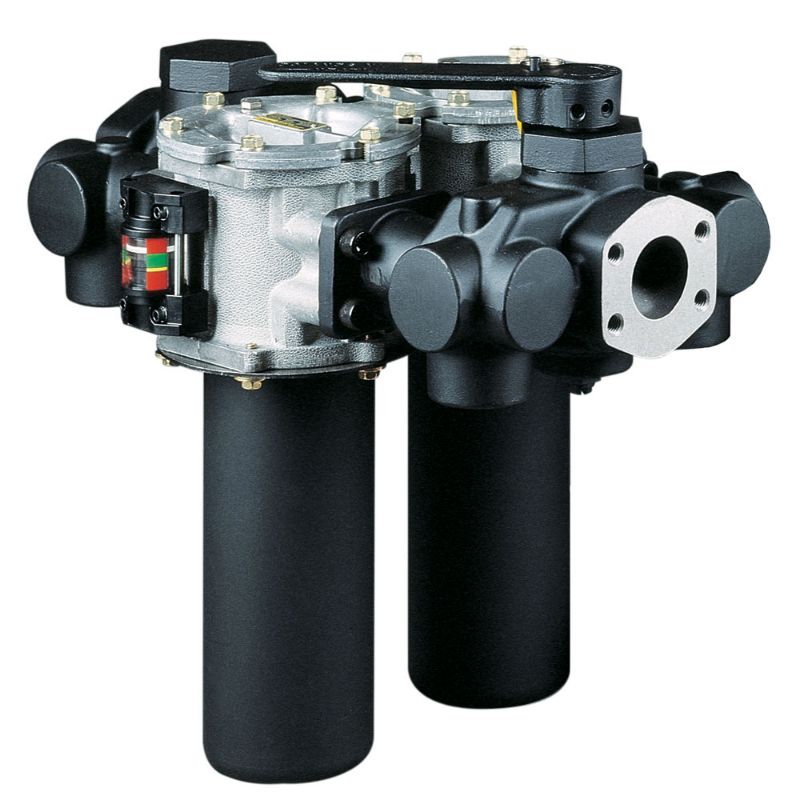

Parker DILP110QBMM35Y9Y91 - Low Pressure Inline Filter Moduflow™ Plus Series

Parker's Moduflow™ Plus series suction/return/duplex patented filter element features longer life and increased dirt capacity. Allowable operating pressure of 200PSI/13.8Bar and capable of flows up to 150GPM/581LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DILP110QBMM35Y9Y91

$3,574.94

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Inline
Housing Material	Aluminum	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Options	None	Filter Element Type	Cartridge
Maximum Operating Temperature	225 °F	Flow Rate	190 L/min
Weight	24.9 kg	Port Type	2 inch SAE flange face, 2 inch SAE flange face
Indicator Type	Visual, Visual	Compatible Element	937395Q
Indicator Pressure Setting	31.5 psi	Pressure Rating	200 psi
Bypass Valve Pressure Rating	35 psi	Seal Material	Nitrile
Options	None	Filter Element	10Q Microglass
Flow Rate (gpm)	50	Indicator Type	Visual, Visual
Bypass Valve (psi)	35	Port Connection Type	2 inch SAE flange face, 2 inch SAE flange face
