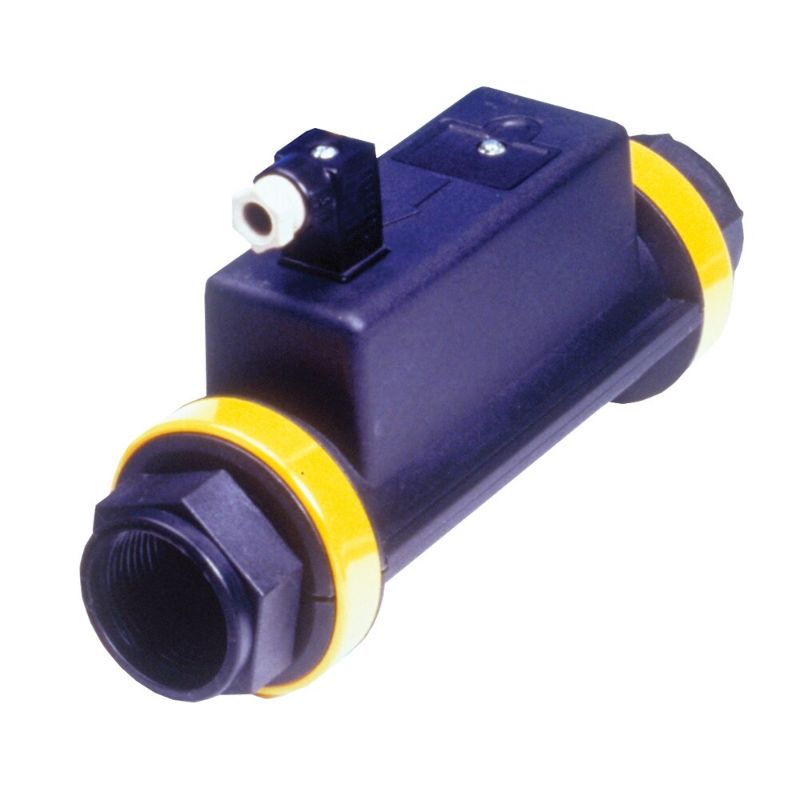

Parker DFT980 - Dataflow - Flow Transmitters

An extensive range of flow metering products. Dataflow 4-20mA and pulse output flow transmitters and the Dataflow Compact inline flow transmitter for reading up to 150 LPM.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DFT980

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	1 to 150 L/min	Technology	Hydraulics
Electrical Requirements	24 VDC	Seal Material	Nitrile
Operating Pressure	10 bar	Port Type	BSP
Sensing Method	Infra-red	Height	106 mm
Materials of Construction	Borosilicate Glass Tube	Specifications Met	Pressure Directive
Industry	General Industrial	Port Size	3/8 inch
Minimum Fluid Temperature	Water: 41 °F	Division	Hydraulic & Industrial Process Filtration Division EMEA
Communication Interface	DIN 43650	Accuracy	+/- 2% FSD
Product Style	Flow Meter	Maximum Fluid Temperature	Water: 140 °F
Division	Hydraulic & Industrial Process Filtration Division EMEA	Brand	Parker
For Fluid Type	Water	Width	60 mm
Operating Temperature	Oil: 5 to 80 °C	Length	196 mm
Product Type	Condition Monitor	Signal Output	Pulse output
Body Material	Glass filled nylon

Product resources

Literature and Reference Materials

Dataflow_bulletin.pdf (PDF)
