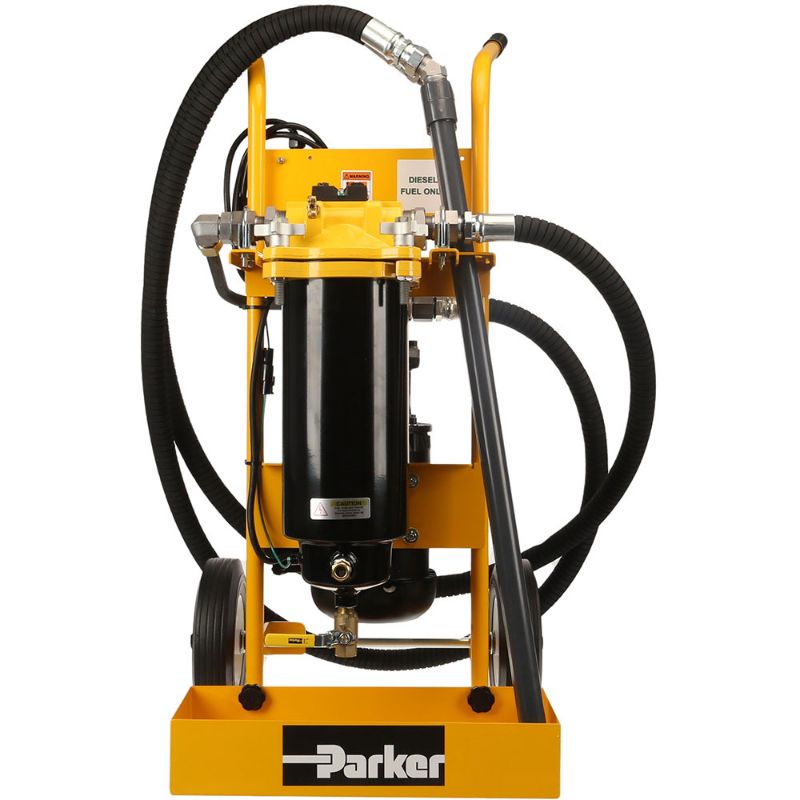

Parker DFCC14WS10VVX1 - Portable Diesel Fuel Conditioning Cart

The Parker Diesel Fuel Cart is the most economical way to protect engines from harm caused by water and particulate contamination. Parker's DFCC polishes and recycles diesel and biodiesel mixtures with Parker's FBO-14 fuel filter at 16 GPM (60LPM).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DFCC14WS10VVX1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Weight	52.2 kg	Electrical Requirements	110/220 volts, 60 Hz, single phase, 8.0/4.2 amp
Bypass Option Included	No Bypass	Motor Type	TEFC Electrical
Height	1092.0 mm	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Seal Material	Fluorocarbon	Materials of Construction	Cart frame – Steel; <br/>Filter head – Die Cast; <br/>Filter bowl – Steel; <br/>Hoses – Nitrile; <br/>Wands - PVC
Depth	533.0 mm	Compatible Element	945517
Maximum Kinematic Viscosity	44.0 cSt	Motor Power Output Rating	¾ hp @ 3500 rpm
For Fluid Type	Diesel Fuels	Indicator Pressure Setting	1.03 bar
Width	21 in (533 mm)	Indicator Type	Differential Visual
Options	None	Flow Rate	60 lpm
Series or Model Replaced	DFC14WS01VVX1, DFC14WS10VVX1	Maximum Operating Temperature	150°F (66°C)
Micron Rating	10	Filtration Option	Water Separator

Product resources

Literature and Reference Materials

DFCC Diesel Fuel Filtration Cart Brochure (PDF)
