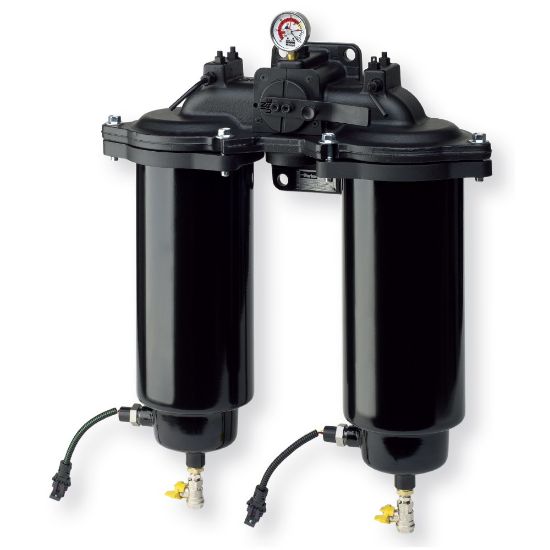

Parker DFBO1010FSVAFGD16WPMA - Low Pressure In-Line Duplex Fuel Filter - DFBO Series

The DFBO is a series of low pressure duplex Fuel Filters for diesel filtration in Marine applications. Suitable for flows up to 90 l/min and pressures up to 10 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DFBO1010FSVAFGD16WPMA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Housing Material	Cast Iron/Steel	Flow Rate	70 L/min
Operating Temperature	0 to 60 °C	Pressure Rating	7 bar
Indicator Pressure Setting	-100 Pa	Division	Hydraulic & Industrial Process Filtration Division EMEA
Mounting Type	Inline	Seal Material	Fluorelastomer
Indicator Type	Vacuum Gauge on Outlet Side	Port Connection Type	G1"
Filter Element Type	10 µm Coalescer Separator	Filter Element	10µm Coalescer Separator *
Flow Rate	70 l/min	Connection Type	G1"
Flow Capacity (l/min)	70 *	Options	Marine Assembly (max. 7 bar), incl. Sight Glass
Length	10"
