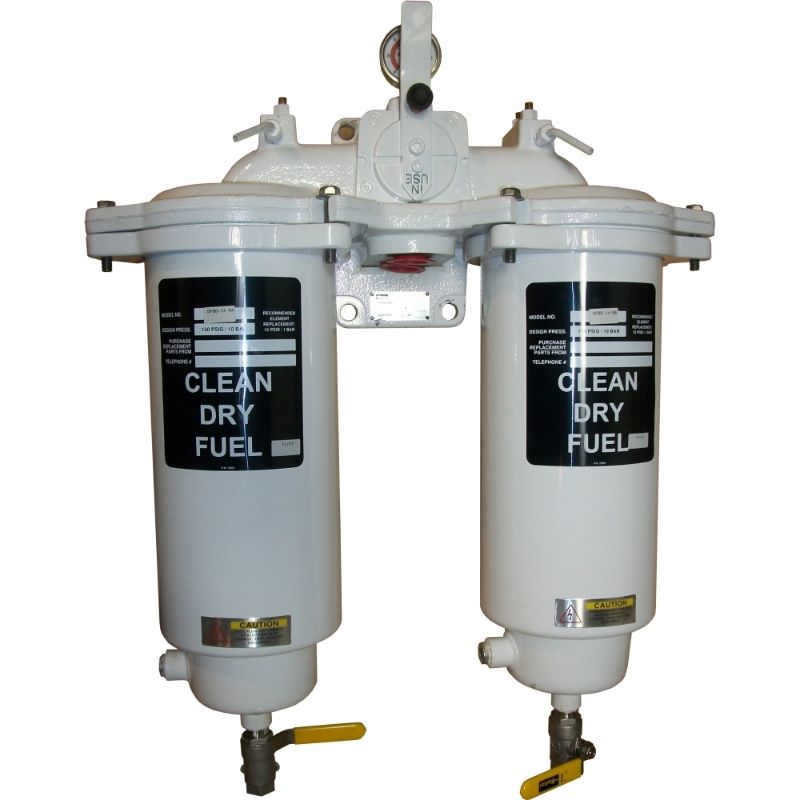

Parker DFBO-14-MA - Fuel Filtration Assemblies – Racor FBO Series

Racor FBO Series Filtration Assemblies are designed to meet the tough conditions of today’s industrial and marine refueling operations. The filters come in a variety of configurations and offer easy, tool-free cartridge change-outs.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DFBO-14-MA

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Indicator Type	Vacuum Gauge Included	Materials of Construction	Aluminum head, Steel Bowl
Brand	Racor	Pressure Rating	150 psi at 240°F
Drain Option	Drain Valve Included	Division	Engine Mobile Original Equipment Division
Valve Type	4-Way Valve	Height	26.8 inch
Additional Options	Water Sight Glass Part #72710	Micron Rating	10 MICRON
Compatible Element	FBO 60338 x 2	For Fluid Type	Diesel/B20/Gasoline
Port Size	1-1/2 inch (2x)	Operating Temperature	-40 to 255 °F
Width	54.9 cm	Mounting Type	Dual Unit Bracket Included
Heat Type	N/A	Water Sensor Option	Order Part# RK18-1656 bushing + RK30880E Sensor
Application	Fuel Transfer/Engine Filtration	Product Series	Cartridge FF/WS
Weight	85 lb	Flow Rate (lph)	Up to 68 in Diesel, 136 Gasoline
Use Case	Marine	Filter Element	25 Micron Coalescing Filter
Number of Housings	Two Housings on Dual Head	Pre-Installed Optional Accessories	Dual Head, Vacuum Gauge
Flow Rate (gpm)	Up to 18 in Diesel, 36 Gasoline
