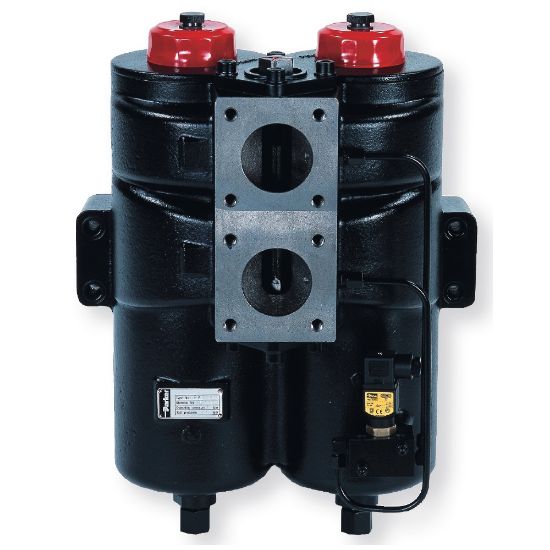

Parker DF20891060WVPXX602 - Low Pressure In-Line Duplex Filter - DF2089 Series

The DF2089 duplex filter is a cast iron duplex filter for Heavy duty duplex operation applications. Suitable for flows up to 350 l/min and pressures up to 30 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DF20891060WVPXX602

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Housing Material	Cast iron	Pressure Rating	30
Operating Temperature	-20 to 160	Flow Rate	350
Division	Hydraulic & Industrial Process Filtration Division EMEA	Mounting Type	Inline
Seal Material	Fluorelastomer	Housing Material	Cast iron
Options	No bypass, no magnet	Micron Rating	60 µm
Flow Rate	0 to 370 l/min	Mounting Type	Inline
Indicator Type	Indicator block plugged	Operating Pressure	30 bar
Indicator Pressure Setting	No indicator	Bypass Valve Pressure Rating	No Bypass, No indicator
Seal Material	Fluorelastomer	Connection Type	60 mm Square flange & Blind counter flange
Filter Element Type	060W Wiremesh
