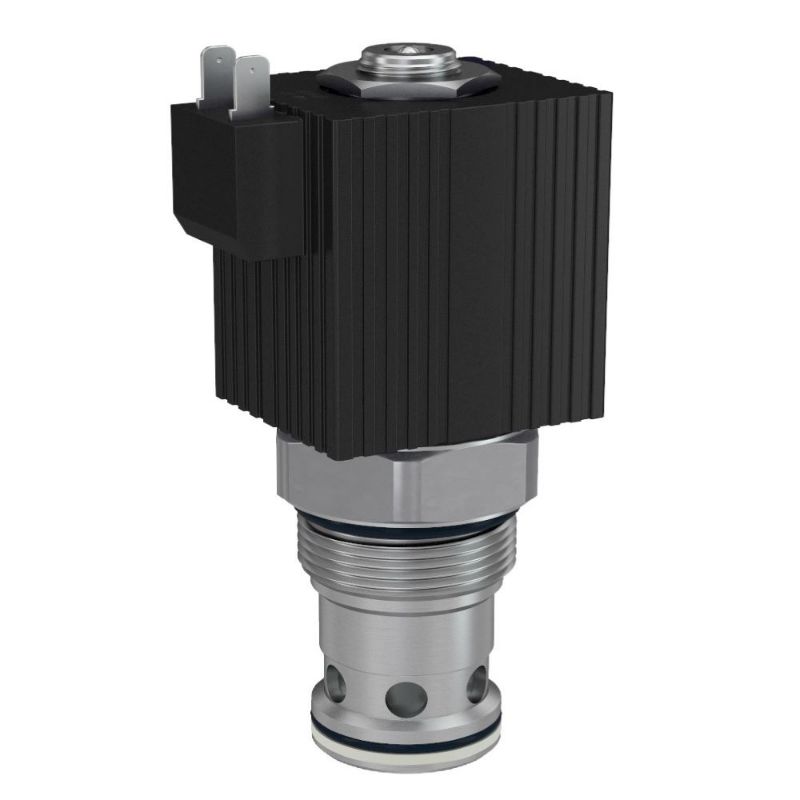

Parker DF201C60V - 2 Way Flow Control Proportional Valves

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DF201C60V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Weight	0.34 kg	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Wire Mesh Screen Included	No	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Rate	60 Gal/min	Installation Torque	113 Nm
Connection Size	n/a	Flow Rate Accuracy	N/A
Maximum Flow Rate	227.0 L/min	Frequency	100-400 Hz
Hysteresis	4%	Variation of Closing Point	N/A
Maximum Operating Pressure	210 bar	Actuation Type	Electrical
Minimum Pressure Differential	N/A psi	Flow Direction	Side to Nose (2 - 1)
Coil Nut Tightening Torque	3 lb-ft	Function	Proportional Flow Control/Regulator
Configuration	Normally Closed	Operation Type	Solenoid Operated
Minimum Operating Temperature	-15 °F	Power Consumption	42 W
Variation of Opening Point	20%-30% of Input Signal	Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A
Cavity Size	C20-2	Maximum Operating Temperature	+204 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Coil Type	1" DS Coil High Watt
Override Functionality	n/a	Valve Material	All parts steel. All operating parts hardened steel
Maximum Inlet Pressure Rating	3000 psi	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Operating Temperature	-26 to +204 °C
Connection Type	n/a	Leak Rate	125 @ 3000 PSI (210 BAR) cm3/min
Seal Material	Fluorocarbon	Body Material	n/a
Actuation Type	Electrical	Flow Rate	60 GAL/MIN, 227 L/MIN
Configuration	Normally Closed	Seal Material	Fluorocarbon
