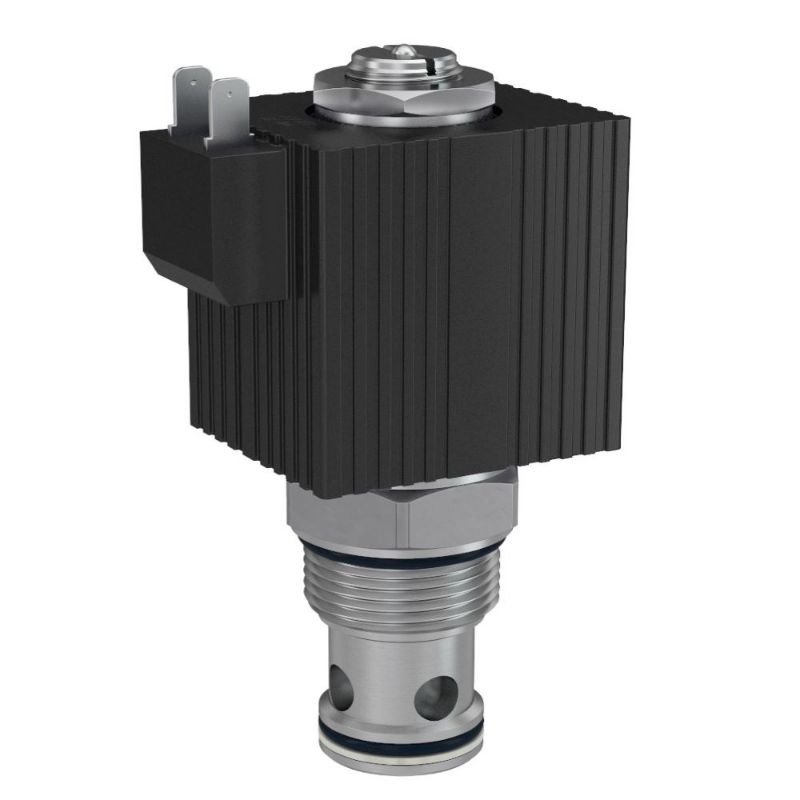

Parker DF161C40V - 2 Way Flow Control Proportional Valves

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DF161C40V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate Accuracy	N/A	Weight	0.75 lb
Frequency	100-400 Hz	Configuration	Normally Closed
Maximum Operating Pressure	210 bar	Variation of Closing Point	N/A
Hysteresis	4%	Actuation Type	Electrical
Minimum Pressure Differential	N/A psi	Function	Proportional Flow Control/Regulator
Flow Direction	Side to Nose (2 - 1)	Maximum Flow Rate	40.0 Gal/min
Operation Type	Solenoid Operated	Maximum Operating Temperature	+204 °C
Minimum Operating Temperature	-15 °F	Variation of Opening Point	20%-30% of Input Signal
Installation Torque	40 lb-ft	Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Power Consumption	42 W
Override Functionality	n/a	Connection Type	n/a
Flow Rate	150 L/min	Valve Material	All parts steel. All operating parts hardened steel
Coil Type	1" DS Coil High Watt	Maximum Inlet Pressure Rating	210 bar
Leak Rate	125 @ 3000 PSI (210 BAR) cm3/min	Wire Mesh Screen Included	No
Cavity Size	C16-2	Body Material	n/a
Seal Material	Fluorocarbon	Operating Temperature	-26 to +204 °C
Division	Hydraulic Systems Division	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Coil Nut Tightening Torque	4.1 Nm
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Connection Size	n/a
Flow Rate	40 GAL/MIN, 150 L/MIN	Configuration	Normally Closed
Actuation Type	Electrical	Seal Material	Fluorocarbon
