*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

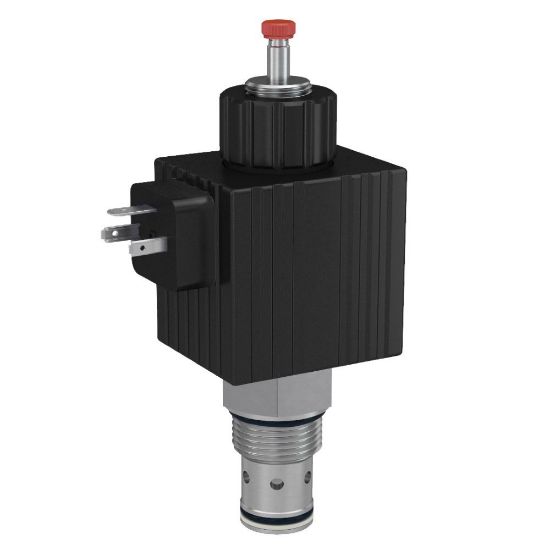

Parker DF122N14 - 2 Way Flow Control Proportional Valves

Parker offers an extensive range of 2-way flow control proportional valves through the use of Current Controlled Pulse Width Modulation (PWM) valve drivers with flow capabilities up to 227 lpm (60 gpm) and pressures as high as 210 bar (3000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DF122N14

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Wire Mesh Screen Included	No	Maximum Operating Temperature	+121 °C
Body Material	n/a	Division	Hydraulic Systems Division
Division	Hydraulic Cartridge Systems Division	Actuation Type	Electrical, Manual
Connection Size	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Seal Material	Nitrile	Variation of Opening Point	N/A
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Coil Nut Tightening Torque	Finger Tight
Minimum Operating Temperature	-34 °C	Operating Temperature	-30 to +250 °F
Flow Rate Accuracy	N/A	Override Functionality	Push Type w/Extended Rod
Hysteresis	4%	Variation of Closing Point	N/A
Maximum Operating Pressure	3000 psi	Frequency	100-400 Hz
Minimum Pressure Differential	N/A psi	Operation Type	Solenoid operated, Manually operated
Function	Proportional Flow Control/Regulator	Flow Rate	14 Gal/min
Leak Rate	250 @ 3000 PSI (210 BAR) cm3/min	Current	Max: 3.53 @ 12 VDC, 1.79 @ 24 VDC A
Configuration	Normally Open	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Maximum Flow Rate	14.0 Gal/min	Weight	0.32 kg
Power Consumption	42 W	Flow Direction	Nose to Side (1 - 2)
Connection Type	n/a	Valve Material	All parts steel. All operating parts hardened steel
Installation Torque	29 Nm	Cavity Size	C12-2
Maximum Inlet Pressure Rating	3000 psi	Coil Type	1" DS Coil High Watt
Flow Rate	14 GAL/MIN, 53 L/MIN	Configuration	Normally Open
Seal Material	Nitrile	Actuation Type	Electrical, Manual
