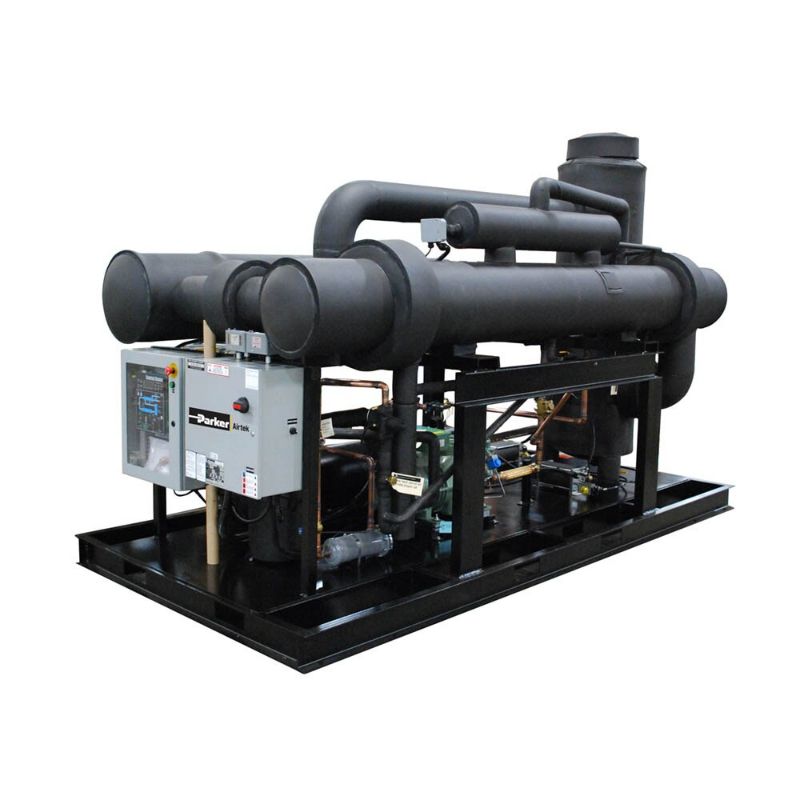

Parker DF-MSC5000-A4 - Magnum Series Cycling Refrigerated Air Dryers - MSC Series

Note: This product is no longer available - please refer to the "Product Support" or "Recommended products" section of this page for details on any alternative products, or contact us for further assistance

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DF-MSC5000-A4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Compatible After Filter	Consult Factory	Division	Industrial Gas Filtration and Generation Division
Minimum Operating Temperature	41	Minimum Ambient Temperature	41
Brand	Airtek	Minimum Operating Pressure	50
Maximum Operating Pressure	150	Maximum Inlet Pressure Rating	100
Product Type	Compressed Air – Refrigerated	Compatible Prefilter	Consult Factory
Width	108	Installed Condensate Drain Type	Level Actuated
Weight	6415	Optional Accessories	Air Cooled Unit
Maximum Flow Rate	8495.05	Compatible Prefilter Element	Consult Factory
Depth	68	Maximum Operating Temperature	131
Connection Type	8" Flg	Compatible After Filter Element	Consult Factory
Refrigerant Type	R404A	Height	95
Maximum Ambient Temperature	115	Pressure Dew Point (F)	39
Maximum Flow Rate (cfm)	5000	Electrical Requirements	460V/3Ph/60Hz
