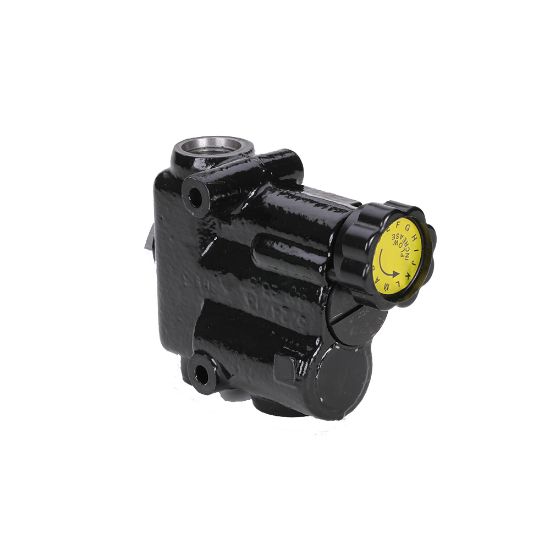

Parker DC25A-75 - Priority Flow Control - DC25 Series

Parker’s DC25A Adjustable Flow Divider is designed for providing a 1-26 GPM controlled flow source. It is typically applied for applications where frequent adjustments to the controlled flow rate are required.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DC25A-75

$517.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	High Strength Cast Iron
Product Style	Priority Flow Control	Minimum Operating Temperature	-40 °F
Weight	8 lb	Connection Size	3/4"
Connection Type	NPT	Actuation Type	Manual
Seal Material	Nitrile	Configuration	Inline
Maximum Flow Rate	n/a	Function	Flow Control
Maximum Operating Pressure	2000 psi	Maximum Operating Temperature	+200 °F
Division	Hydraulic Valve Systems Division	Flow Rate	Adjustable Gal/min
Maximum Operating Pressure	2000	Port Size	3/4" NPTF
Minimum Operating Pressure	70

Product resources

Literature and Reference Materials
