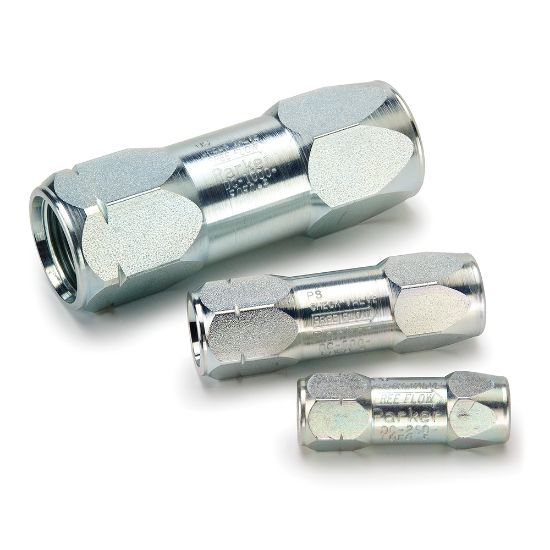

Parker DC-370-5 - Hard Seat,Hydraulic In Line Check Valves - DC Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DC-370-5

$76.86/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	N/A
Connection Type	Female NPT to Female NPT	Division	Quick Coupling Division
Maximum Operating Temperature	-40 °F	Body Material	Steel
Mounting Type	Threaded	Minimum Operating Temperature	250 °F
Maximum Flow Rate	N/A	Seat Type	Metal seal
Seal Material	Metal	Actuation Type	Mechanical
Connection Size	3/8 - 18 NPSF	Maximum Operating Pressure	3000 psi
Flow Direction	N/A	Body Size (inch)	3/8
Outlet Port Connection Type	Female Pipe Thread	Cracking Pressure (psi)	5
Inlet Port Connection Type	Female Pipe Thread	Outlet Port Size (inch)	3/8 - 18 NPSF
Inlet Port Size (inch)	3/8 - 18 NPSF
