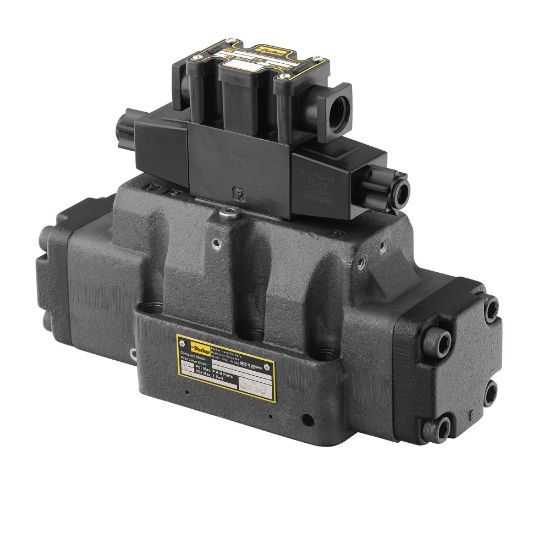

Parker D81VW082C4NYW - Pilot Operated Directional Control Valve - D81VW Series

Name: Parker D81VW082C4NYW - Pilot Operated Directional Control Valve - D81VW Series
SKU: D81VW082C4NYW
Price: 1936.50 USD
Availability: InStock

Parker’s D81VW directional control valves are 5-chamber, pilot operated, solenoid controlled valves.

AFP Availability:

10 In Stock

North Chesterfield, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. D81VW082C4NYW

$1,936.50/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	+140
Power Supply Voltage	120/60 - 110/50 VAC	Connection Type	DIN w/o Plug
Spool Position	Double solenoid, 3 position, spring centered	Division	Hydraulic Valve Systems Division
Options	Omit - No Options	Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot
Coil Specifications Met	Omit - Standard Valve	Body Material	Grey Iron
Mounting Type	Subplate	Maximum Flow Rate	160
Pilot Inlet / Drain Locations	Internal Pilot, Internal Drain	Minimum Operating Temperature	-4
Solenoid Option	Omit - High Watt	Spool Code	082 - 4-Way, 3 Position; P Port Blocked; Metered
Weight	43.2	Maximum Operating Pressure	5000
Actuation Type	Hydaulic Pressure	Seal Material	Nitrile
Additional Options	Consult catalog for other available features	Valve Type	Pilot Operated Directional Control Valve
Maximum Operating Pressure	5000 PSI	Maximum Flow Rate	160 GPM
Size	NFPA D08, CETOP8, DIN NG25, Low Flow, D03 Pilot	Mounting Type	Subplate
