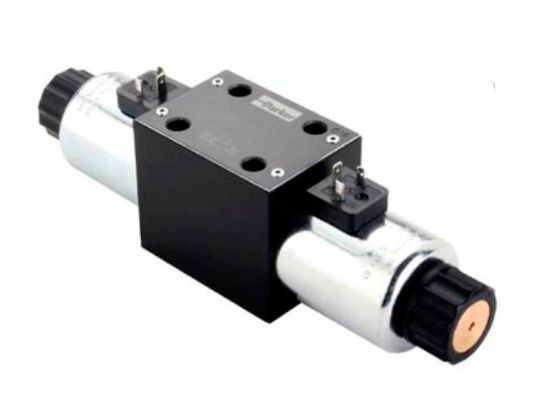

Parker D3W4CNYW - D3W Series - Double solenoid, 3 position, spring centered

D3W Series - Double solenoid, 3 position, spring centered - NFPA D05 (CETOP 5, NG 10)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D3W4CNYW

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Spool Type	Float Center - P Blocked, A&B > T
Pkg Qty	1	Parker Spool Code	4
Parker Valve Style Code	C	Max Flow (at 3000 PSI)	40 GPM (154 LPM)
UOM	EA	Solenoid Voltage	120/60 - 110/50 VAC
Solenoid Connection	DIN Style (43650) w/o Plug	Seals	Buna-N (Nitrile)
Parker Spool Code	4	Subplate Pattern	NFPA D05 (CETOP 5, NG 10)
Parker Valve Style Code	C	Parker Group	Hydraulic
Max Flow (at 3000 PSI)	40 GPM (154 LPM)	Solenoid Voltage	120/60 - 110/50 VAC
Parker Division	Hydraulic Valve	Max Pressure	5000 PSI (345 Bar)
Seals	Buna-N (Nitrile)	Solenoid Connection	DIN Style (43650) w/o Plug
Series	D3W	Valve Style	Double solenoid, 3 position, spring centered
Operator Type	Solenoid	Spool Type	Float Center - P Blocked, A&B > T

Product resources

Solenoid Valves (PDF)
