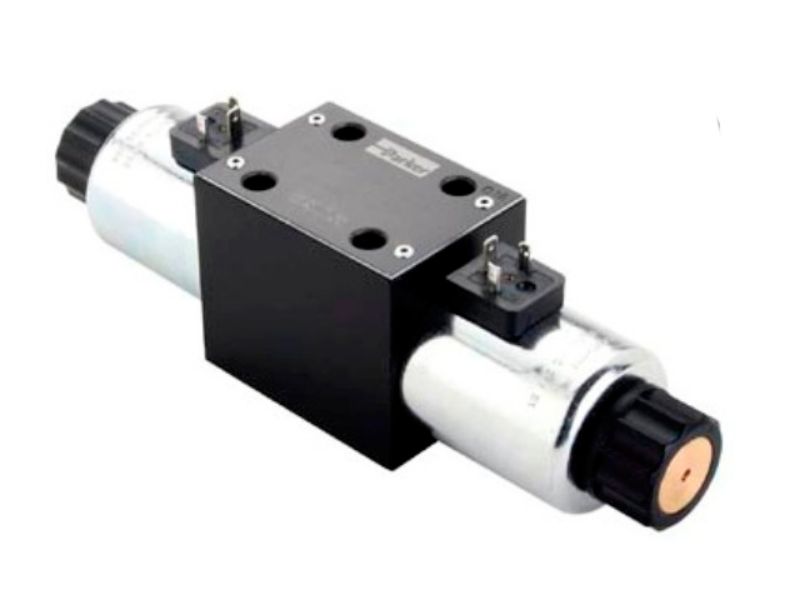

Parker D3W20DNJW - D3W Series - Double solenoid, 2 position, detent

D3W Series - Double solenoid, 2 position, detent - NFPA D05 (CETOP 5, NG 10)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D3W20DNJW

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Max Flow (at 3000 PSI)	25 GPM (96 LPM)
Solenoid Connection	DIN Style (43650) w/o Plug	Spool Type	P > A, B > T
Seals	Buna-N (Nitrile)	Parker Spool Code	20
Parker Valve Style Code	D	Solenoid Voltage	24 VDC
Pkg Qty	1	UOM	EA
Seals	Buna-N (Nitrile)	Max Flow (at 3000 PSI)	25 GPM (96 LPM)
Solenoid Connection	DIN Style (43650) w/o Plug	Parker Valve Style Code	D
Parker Spool Code	20	Operator Type	Solenoid
Series	D3W	Solenoid Voltage	24 VDC
Subplate Pattern	NFPA D05 (CETOP 5, NG 10)	Parker Group	Hydraulic
Parker Division	Hydraulic Valve	Max Pressure	5000 PSI (345 Bar)
Valve Style	Double solenoid, 2 position, detent	Spool Type	P > A, B > T

Product resources

Solenoid Valves (PDF)
