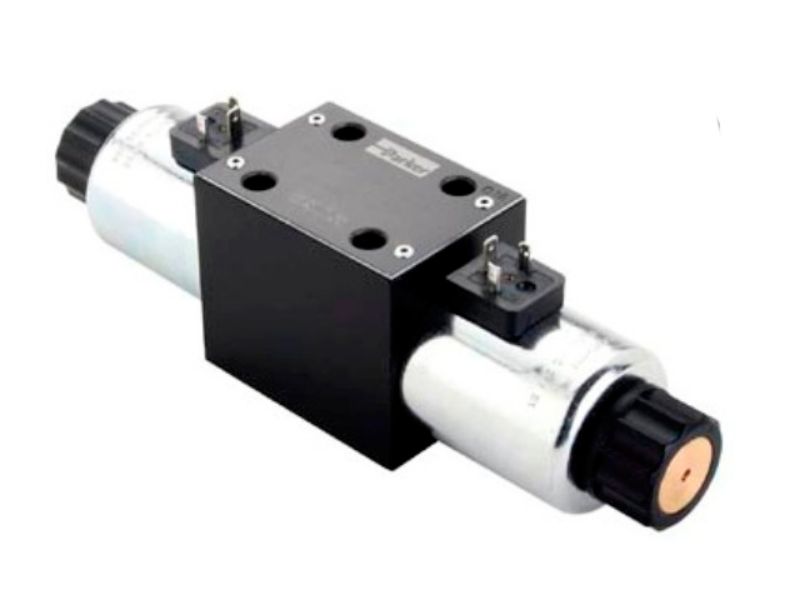

Parker D3W20BNJW - D3W Series - Single solenoid, 2 position, spring offset P > A

D3W Series - Single solenoid, 2 position, spring offset P > A - NFPA D05 (CETOP 5, NG 10)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D3W20BNJW

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Parker Spool Code	20
Pkg Qty	1	Solenoid Voltage	24 VDC
Max Flow (at 3000 PSI)	40 GPM (154 LPM)	UOM	EA
Spool Type	P > A, B > T	Parker Valve Style Code	B
Seals	Buna-N (Nitrile)	Solenoid Connection	DIN Style (43650) w/o Plug
Solenoid Voltage	24 VDC	Subplate Pattern	NFPA D05 (CETOP 5, NG 10)
Operator Type	Solenoid	Series	D3W
Valve Style	Single solenoid, 2 position, spring offset P > A	Parker Group	Hydraulic
Max Flow (at 3000 PSI)	40 GPM (154 LPM)	Parker Division	Hydraulic Valve
Max Pressure	5000 PSI (345 Bar)	Parker Valve Style Code	B
Seals	Buna-N (Nitrile)	Spool Type	P > A, B > T
Solenoid Connection	DIN Style (43650) w/o Plug	Parker Spool Code	20

Product resources

Solenoid Valves (PDF)
