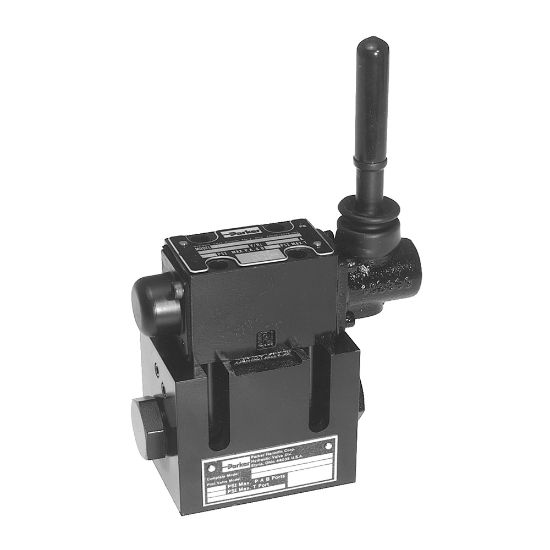

Parker D31DL001C1V - Lever Operated Directional Control Valve - D31DL, D31VL Series

Parker’s D31*L directional control valves are 5-chamber, pilot operated, lever controlled valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D31DL001C1V

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Valve Type	Lever Operated Directional Control Valve	Body Material	Gray Iron
Division	Hydraulic Valve Systems Division	Options	n/a
Mounting Type	Subplate	Maximum Operating Temperature	140
Maximum Flow Rate	40	Spool Position	Double Operator
Spool Code	4-Way	Maximum Operating Pressure	5000
Actuation Type	Hydraulic Pressure	Pilot Inlet / Drain Locations	Internal Pilot / External Drain
Weight	12	Minimum Operating Temperature	-4
Seal Material	Fluorocarbon	Maximum Flow Rate	Up to 40 GPM depending on spool
Mounting Type	Subplate	Maximum Operating Pressure	5000 PSI
Size	NFPA D05HE, CETOP 5H (ISO)
