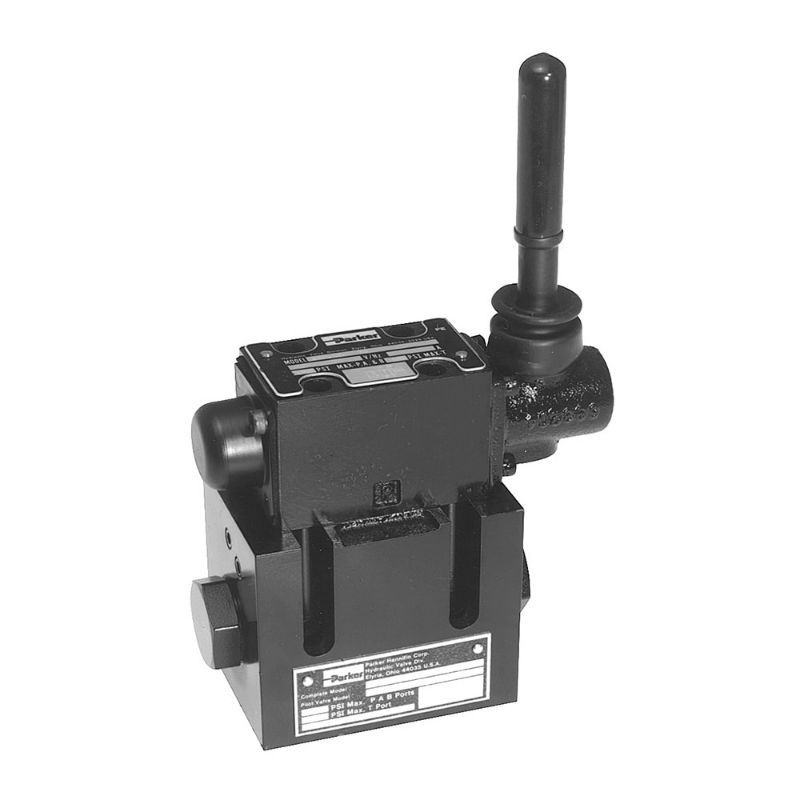

Parker D31DL001C1N - Lever Operated Directional Control Valve - D31DL, D31VL Series

Parker’s D31*L directional control valves are 5-chamber, pilot operated, lever controlled valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D31DL001C1N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Spool Code	All Ports Blocked	Maximum Operating Temperature	140 °F
Actuation Type	Hydraulic Pressure	Maximum Operating Pressure	5000 psi
Seal Material	Nitrile	Pilot Inlet / Drain Locations	Internal Pilot / External Drain
Maximum Flow Rate	40 Gal/min	Valve Type	Lever Operated Directional Control Valve
Division	Hydraulic Valve Systems Division	Body Material	Gray Iron
Options	n/a	Mounting Type	Subplate
Minimum Operating Temperature	-4 °F	Weight	12 lb
Spool Position	Spring Centered	Maximum Operating Pressure	5000 PSI
Mounting Type	Subplate	Size	NFPA D05HE, CETOP 5H (ISO)
Maximum Flow Rate	Up to 40 GPM depending on spool
