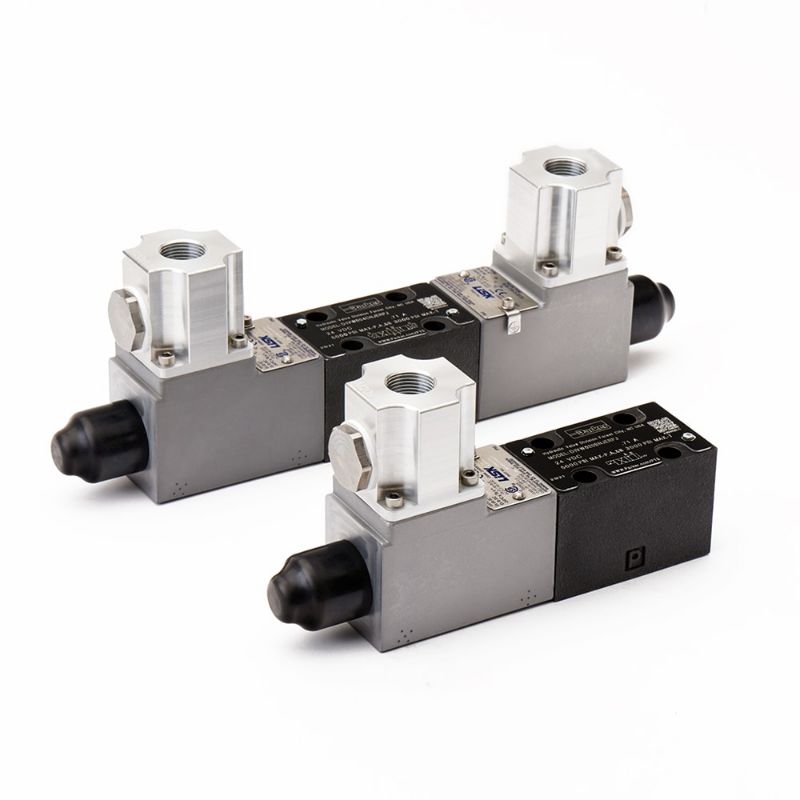

Parker D1VW020BNYERP - Explosion Proof D1VW*ER Directional Control Valve

Parker’s Explosion Proof D1VW ER is a tri-rated , directional control valve for NFPA D03 (NG06 / CETOP 03) up to 20 GPM and to 5,000 PSI.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D1VW020BNYERP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	For Fluid Type	Hydraulic Oil
Maximum Operating Pressure	5000	Division	Hydraulic Valve Systems Division
Minimum Operating Temperature	-65	Maximum Operating Temperature	158
Actuation Type	Solenoid	Mounting Type	Subplate
Division	Hydraulic Valve Systems Division	Size	NFPA DO3; CETOP 3; DIN NG6
Weight	5.2, 9.4	Maximum Flow Rate	22
Connection Type	Explosion Proof with Configurable Cable Connection	ConfiguratorType	Tacton
Specifications Met	ATEX / UL / CSA / IECEx	ConfiguratorModelID	D1VW_ER
Electrical Part Option	Diode Surge Supressor, N/A	Override Functionality	Extended Manual Override with Boot
