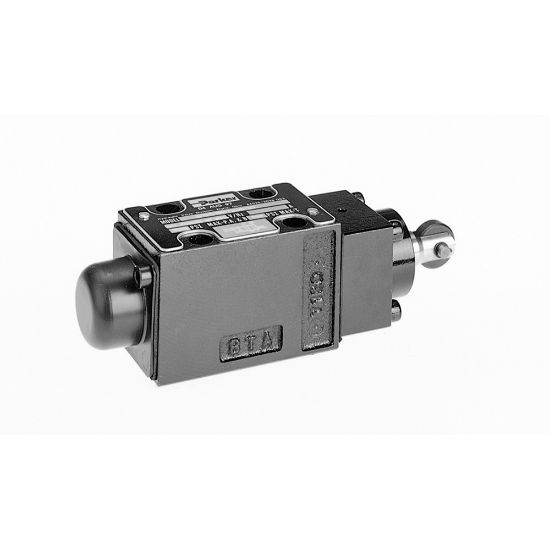

Parker D1VC001BV - Cam Operated Directional Control Valve - D1VC, D1VD, D1VG Series

Parker’s D1VC, D1VD and D1VG directional control valves are high performance, 4-chamber, direct operated, cam controlled, 4-way valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D1VC001BV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Manifold	Valve Type	Industrial Cam Operated Directional Control Valve
Size	NFPA3	Actuation Type	Cam (90° to mounting surface)
Maximum Operating Temperature	140 °F	Maximum Flow Rate	22.0 Gal/min
Maximum Operating Pressure	5000 psi	Spool Code	All Ports Blocked
Spool Position	Spring Offset Operator at "A" port end	Body Material	Steel
Seal Material	Fluorocarbon	Weight	3.2 lb
Division	Hydraulic Valve Systems Division	Actuation Type	Cam (90° to mounting surface)
Mounting Type	Subplate	Maximum Flow Rate	22 GPM
Size	NFPA3; CETOP 3; NG9	Maximum Operating Pressure	3000 PSI
