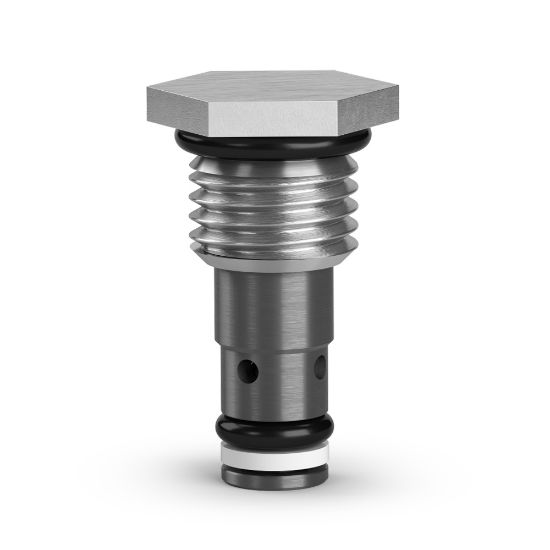

Picture of Parker D0WB2-1.0N - Standard Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker D0WB2-1.0N - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. D0WB2-1.0N
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Seal MaterialNitrileBody Materialn/a
Maximum Operating Pressure6000 psiDivisionHydraulic Cartridge Systems Division
For Fluid TypeSynthetic Hydraulic FluidsFilter Efficiency RatingISO 4406 18/16/13
Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)Maximum Operating Temperature121 °C
Minimum Operating Temperature-34 °CActuation TypePressure Sensing
Maximum Flow Rate6 L/minDivisionMobile Hydraulic Systems Division Europe
Valve MaterialHardened Steel (all operating parts)Operating Temperature-34 to 121 °C
Maximum Inlet Pressure Rating6000 psiCracking Pressure15 psi
Flow Direction1-2 Free FlowFunctionStandard Check
Leak Rate< 3 drops/min @ 6000 Psi (420 bar)Weight0.012 kg
Flow Rate0.9 gal/min @ 100 Psi (7 bar) NominalCavity SizeCAV0W-2
Installation Torque7 lb-ftSeal MaterialNitrile
Cracking Pressure15 PSI, 1 BARMaximum Flow Rate1.6 GAL/MIN, 6 LPM
