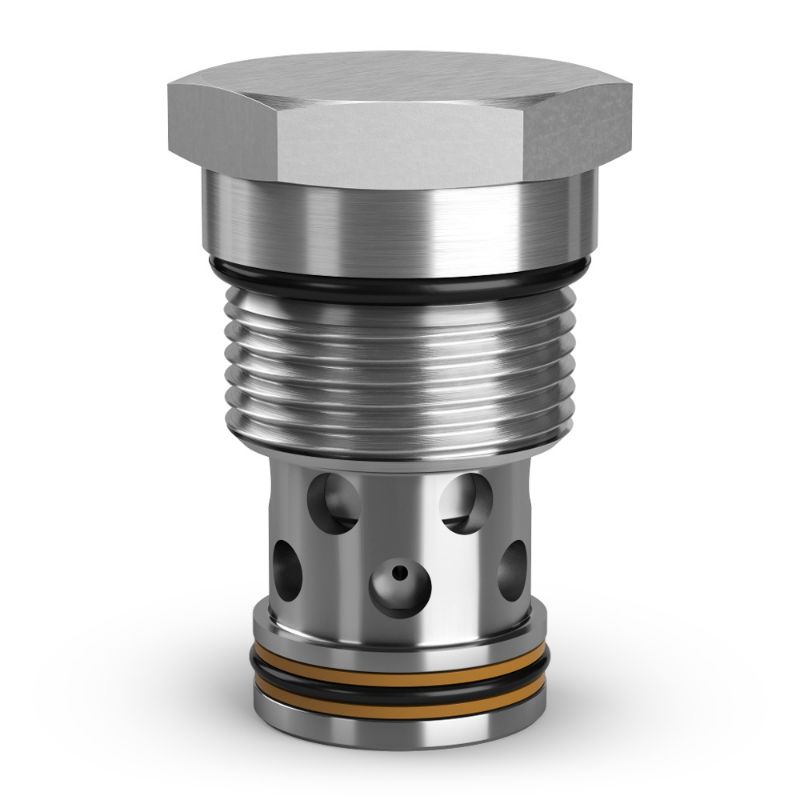

Parker D06B2P0.1N - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D06B2P0.1N

$110.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	74 gal/min @ 100 Psi (7 bar) Nominal
Actuation Type	Pressure Sensing	Installation Torque	74
Minimum Operating Temperature	-30	Division	Hydraulic Valve Systems Division Europe
Flow Direction	2-1 Checked	Cracking Pressure	1.5
Maximum Inlet Pressure Rating	6000	Function	Standard Check
Weight	0.6	Valve Material	Steel (all parts)
Maximum Operating Pressure	6000	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Seal Material	Nitrile
Division	Hydraulic Valve Systems Division	Cavity Size	C16-2
Maximum Operating Temperature	250	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Flow Rate	132	Body Material	n/a
Operating Temperature	-30 to 250	Leak Rate	< 3 drops/min @ 6000 Psi (420 bar)
Seal Material	Nitrile	Cracking Pressure	1.5 PSI, 0.1 BAR
Maximum Flow Rate	132 GAL/MIN, 500 L/MIN
