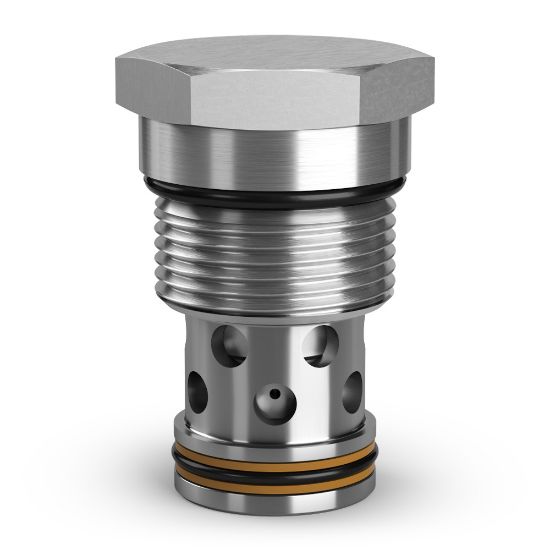

Parker D06B2P0.0N - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D06B2P0.0N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Body Material	n/a
Minimum Operating Temperature	-30	Division	Hydraulic Valve Systems Division
For Fluid Type	Mineral-based Hydraulic Fluids	Valve Material	Steel (all parts)
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Temperature	250	Maximum Operating Pressure	6000
Actuation Type	Pressure Sensing	Operating Temperature	-30 to 250
Maximum Inlet Pressure Rating	6000	Cavity Size	C16-2
Installation Torque	74	Weight	0.6
Flow Direction	2-1 Checked	Function	Standard Check
Leak Rate	< 3 drops/min @ 6000 Psi (420 bar)	Division	Hydraulic Valve Systems Division Europe
Flow Rate	74 gal/min @ 100 Psi (7 bar) Nominal	Cracking Pressure	0
Maximum Flow Rate	132	Seal Material	Nitrile
Cracking Pressure	0 PSI, 0 BAR	Maximum Flow Rate	132 GAL/MIN, 500 L/MIN
