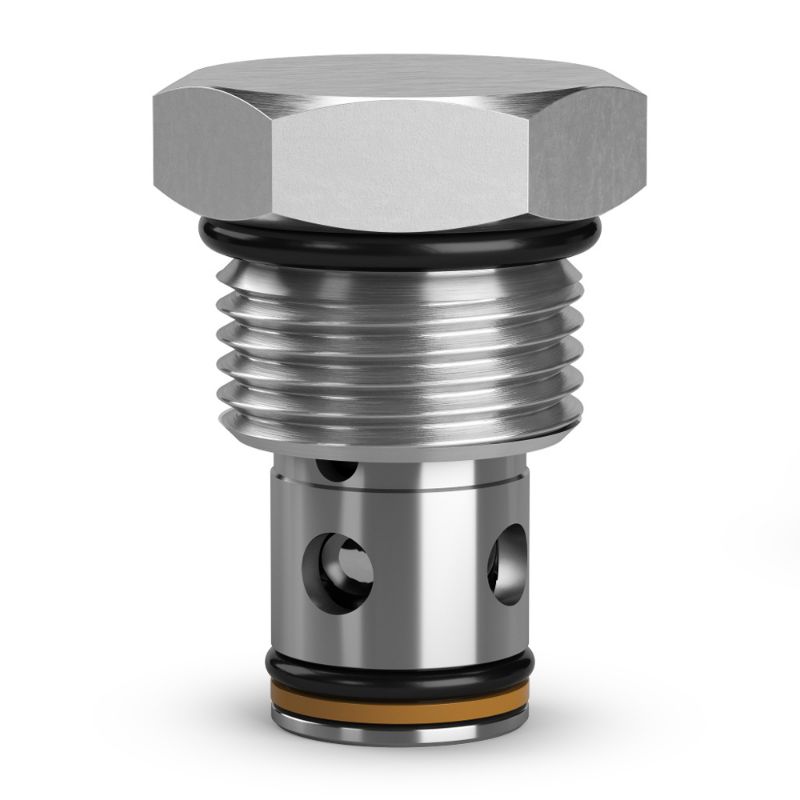

Parker D04B2-0.0V - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D04B2-0.0V

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	204 °C
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based Hydraulic Fluids
Valve Material	Steel (all parts)	Operating Temperature	-15 to 400 °F
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-26 °C	Maximum Operating Pressure	420 bar
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Maximum Inlet Pressure Rating	420 bar	Cavity Size	C10-2
Installation Torque	37 lb-ft	Maximum Flow Rate	42 Gal/min
Weight	0.18 lb	Flow Direction	1-2 Free Flow
Function	Standard Check	Cracking Pressure	0 psi
Flow Rate	24 Gal/min @ 100 Psi (7 bar) Nominal	Leak Rate	3 drops/min @ 6000 Psi (420 bar)
Seal Material	Fluorocarbon	Cracking Pressure	0 PSI, 0 BAR
Maximum Flow Rate	42 GAL/MIN, 160 L/MIN
