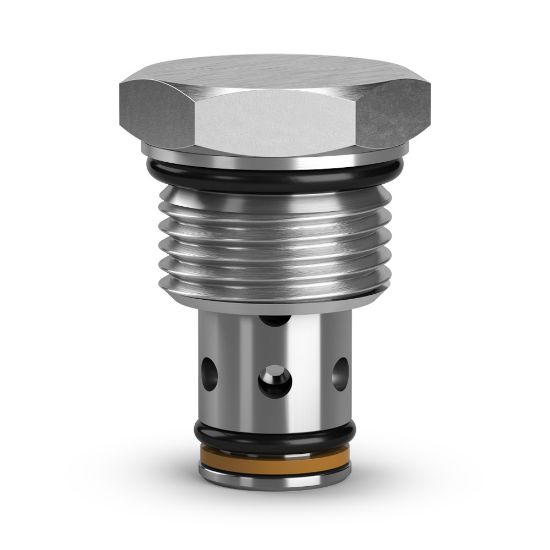

Picture of Parker D02B2-0.2V - Standard Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker D02B2-0.2V - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. D02B2-0.2V
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Maximum Operating Temperature204 °CSeal MaterialFluorocarbon
Body Materialn/aMaximum Operating Pressure6000 psi
DivisionHydraulic Cartridge Systems DivisionFor Fluid TypeSynthetic Hydraulic Fluids
Valve MaterialSteel (all parts)Operating Temperature-26 to 204 °C
Filter Efficiency RatingSAE Class 4Maximum Kinematic Viscosity45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature-15 °FActuation TypePressure Sensing
DivisionMobile Hydraulic Systems Division EuropeCavity SizeC08-2
Installation Torque30 lb-ftMaximum Inlet Pressure Rating6000 psi
Cracking Pressure3 psiFlow Direction2-1 Checked
FunctionStandard CheckWeight0.11 lb
Flow Rate45 L/min @ 100 Psi (7 bar) NominalLeak Rate< 3 drops/min @ 6000 Psi (420 bar)
Maximum Flow Rate21 Gal/minSeal MaterialFluorocarbon
Cracking Pressure3 PSI, 0.2 BARMaximum Flow Rate21 GAL/Min, 80 L/MIN
