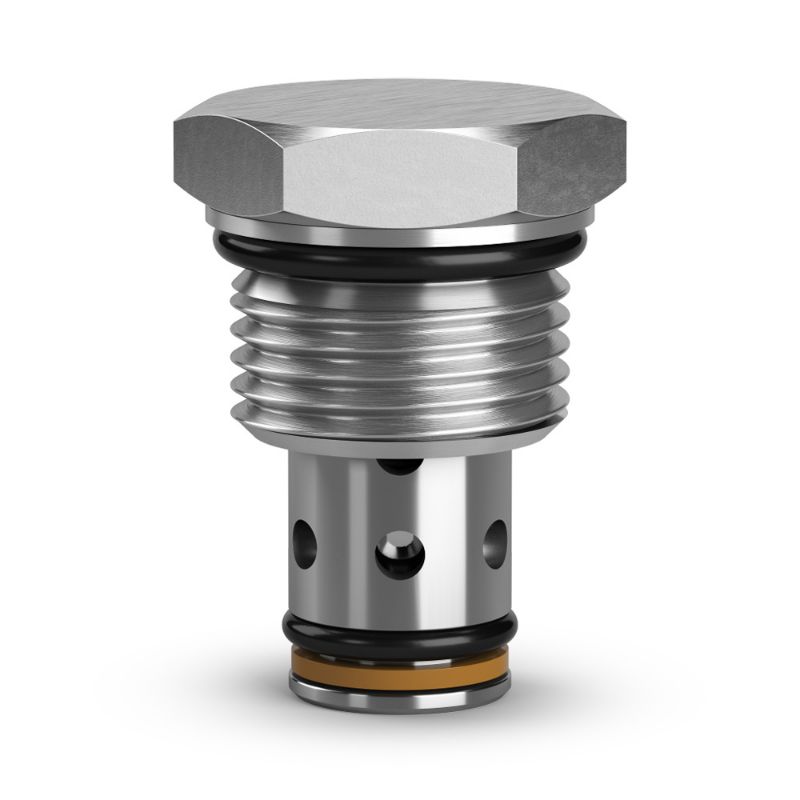

Parker D02B2-0.2N - Standard Check Valves

Capable of flows from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure as high as 420 bar (6,000 psi), Parker’s poppet and ball style check valves have a simple and robust design which are used to block flow in one direction, and allow flow in the opposite.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D02B2-0.2N

$36.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	n/a
Operating Temperature	-30 to 250 °F	Maximum Flow Rate	21 Gal/min
Division	Mobile Hydraulic Systems Division Europe	Leak Rate	< 3 drops/min @ 6000 Psi (420 bar)
Actuation Type	Pressure Sensing	Seal Material	Nitrile
Flow Rate	45 L/min @ 100 Psi (7 bar) Nominal	Installation Torque	30 lb-ft
Minimum Operating Temperature	-30 °F	Cracking Pressure	3 psi
Function	Standard Check	Maximum Inlet Pressure Rating	420 bar
Flow Direction	2-1 Checked	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Weight	0.05 kg	Valve Material	Hardened Steel (all operating parts)
Maximum Operating Pressure	6000 psi	Filter Efficiency Rating	ISO 4406 18/16/13
Cavity Size	C08-2	Maximum Operating Temperature	250 °F
For Fluid Type	Mineral-based Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
Seal Material	Nitrile	Cracking Pressure	3 PSI, 0.2 BAR
Maximum Flow Rate	21 GAL/Min, 80 L/MIN
